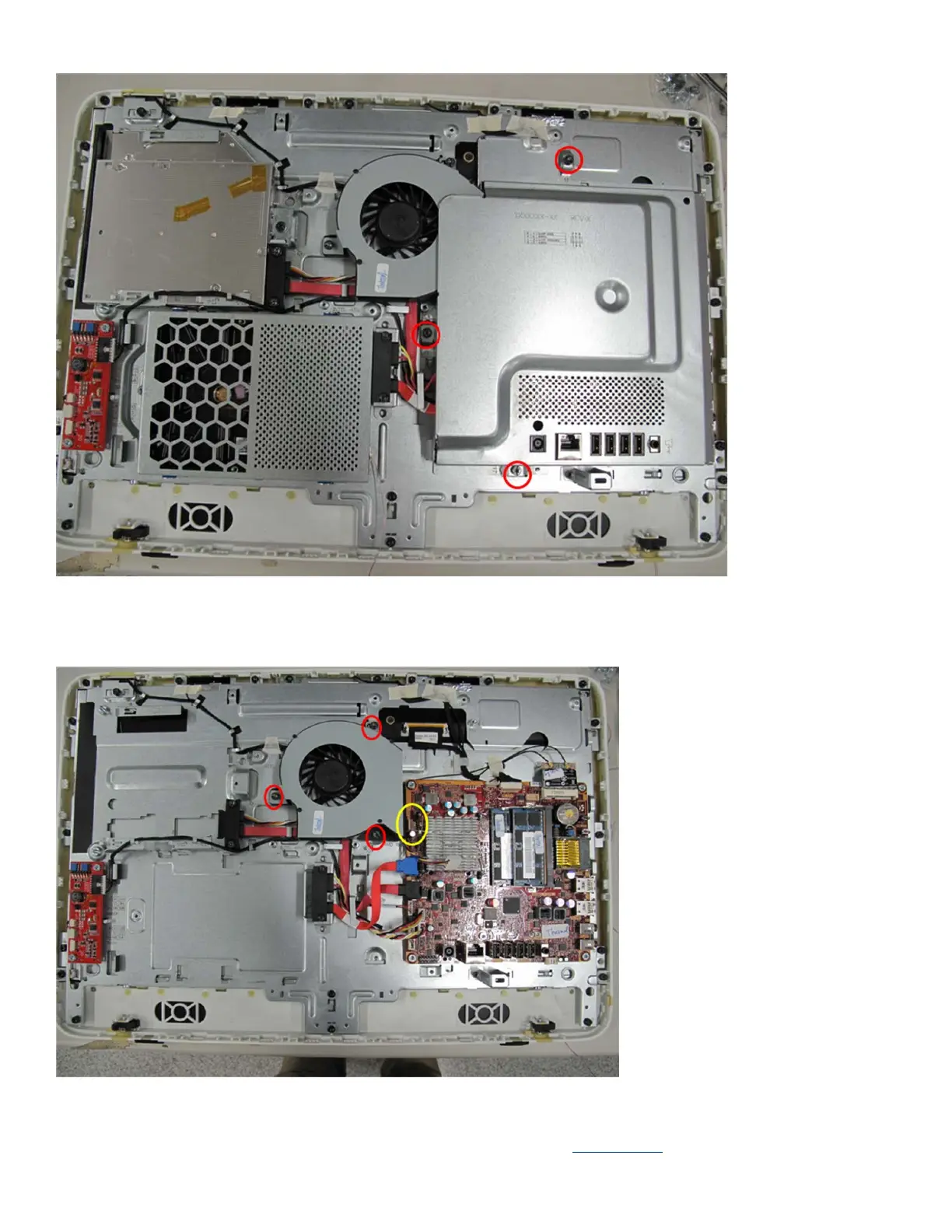

(1) Remove 3pcs screws with circles in red
7. Disassemble FAN Module
Remove 3pcs screws and remove the cable with in yellow circle to disassemble the fan.
EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01
