12. If it is necessary to replace the display panel cable:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display back cover.

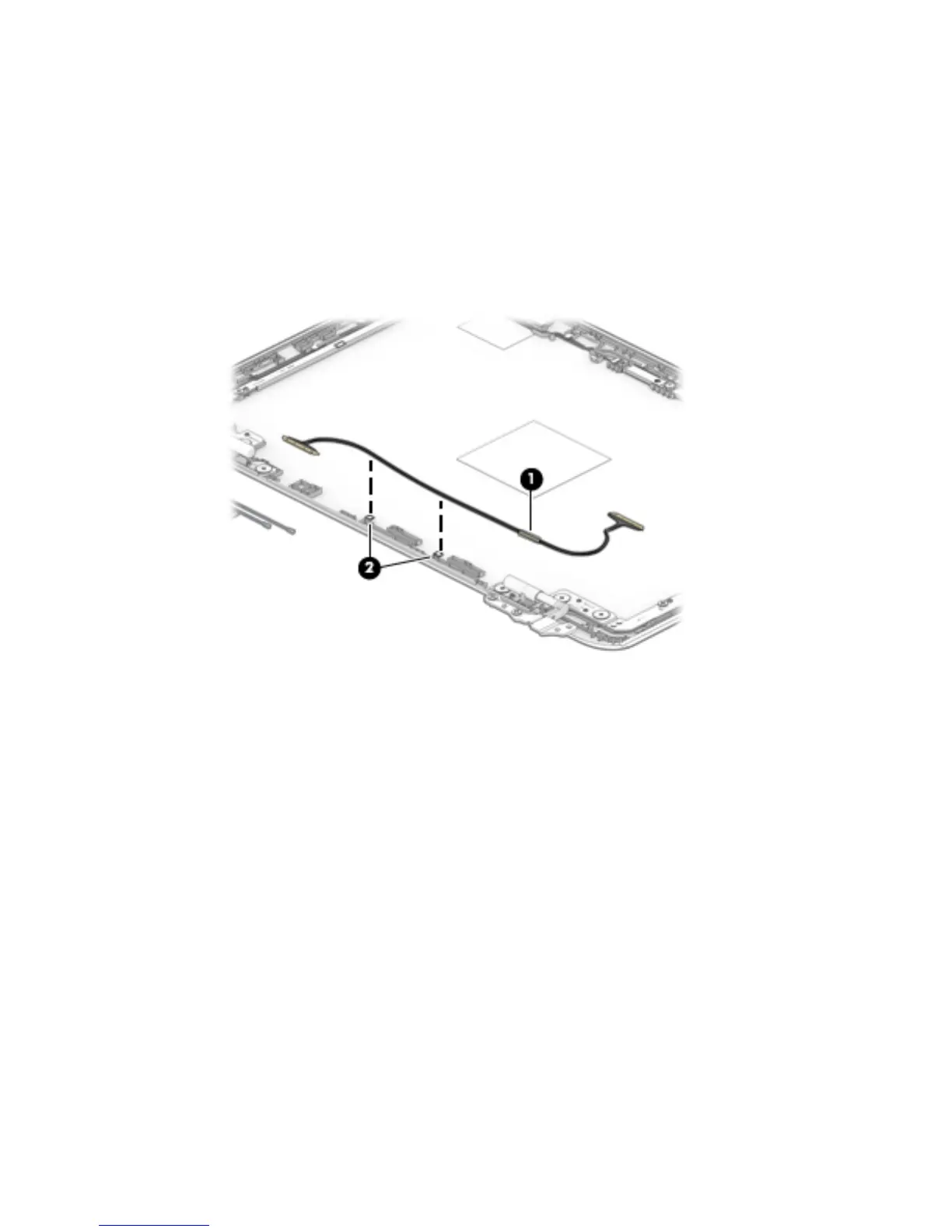

d. Detach the display panel cable (1) from the display back cover. (The display panel cable is attached to
the display back cover with double-sided adhesive.)
e. Release the display panel cable from the retention clips (2) and routing channel built into the display
back cover.
f. Remove the display panel cable.
The display panel cable is available using the following spare part numbers, and includes double-
sided adhesive.
● L14916-001 – For use only on computer models equipped with an HD BrightView TouchScreen
display assembly
● L14915-001 – For use only on computer models equipped with an AntiGlare TouchScreen
display assembly
● L14914-001 – For use only on computer models equipped with non-TouchScreen
display assembly
13. If it is necessary to replace the display hinges:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display back cover.
d. Remove the four Phillips PM2.5×4.9 screws (1) that secure the hinges to the bottom cover.
e. Release the hinges (2) by sliding them toward the inside of the computer.
40 Chapter 5 Removal and replacement procedures
