4. Carefully remove the rubber feet (3).
To install the rubber feet, ret them on the adhesive backing.

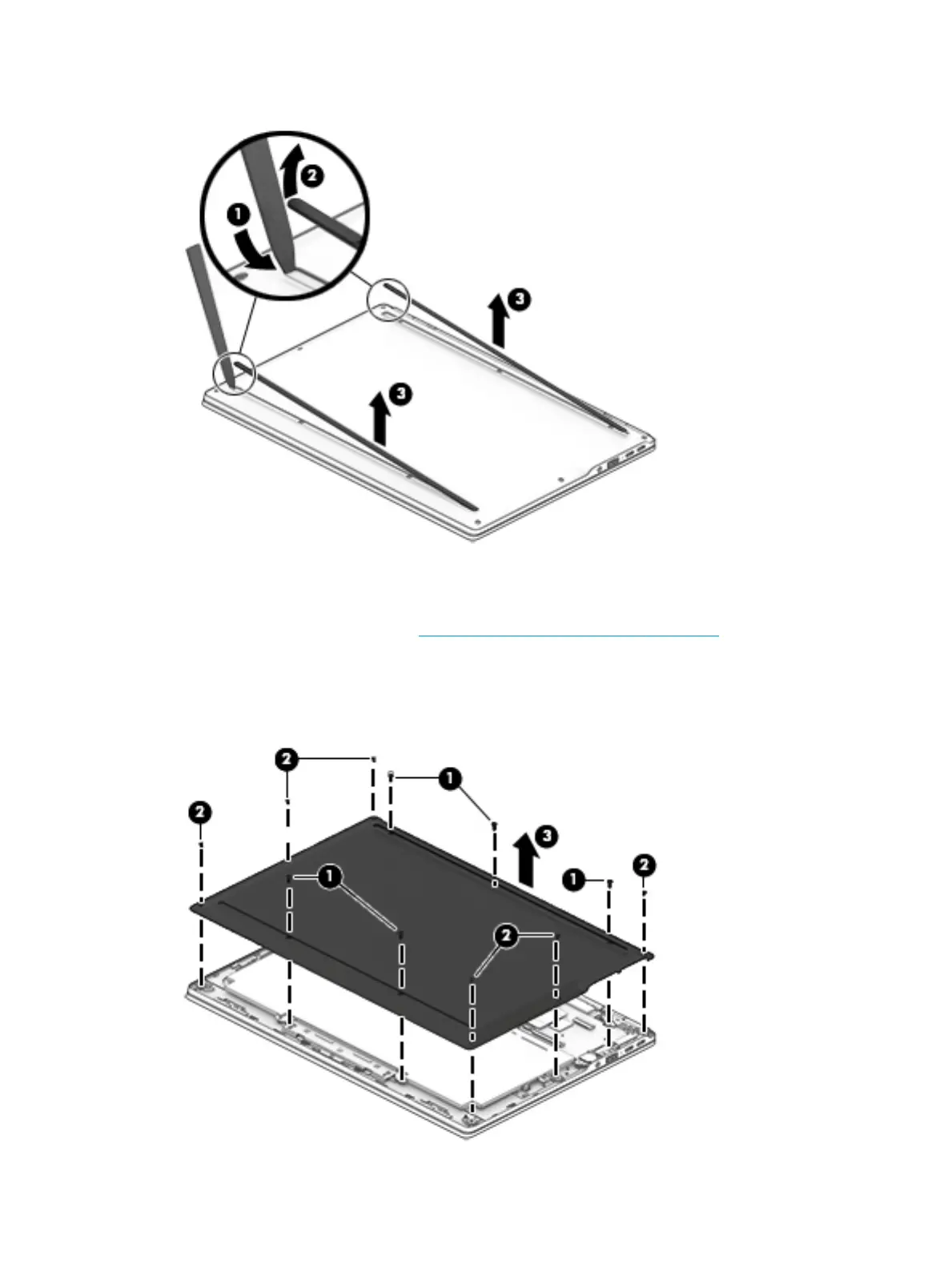

Remove the base enclosure:
1. Remove the two computer feet (see Computer feet and base enclosure on page 19).
2. Remove the ve screws (1).
3. Remove the remaining six screws (2) that secure the keyboard/top cover to the base enclosure.
4. Lift the edges and remove the base enclosure (3).
20 Chapter 5 Removal and replacement procedures
