HP chromebook 13 g1 User Manual

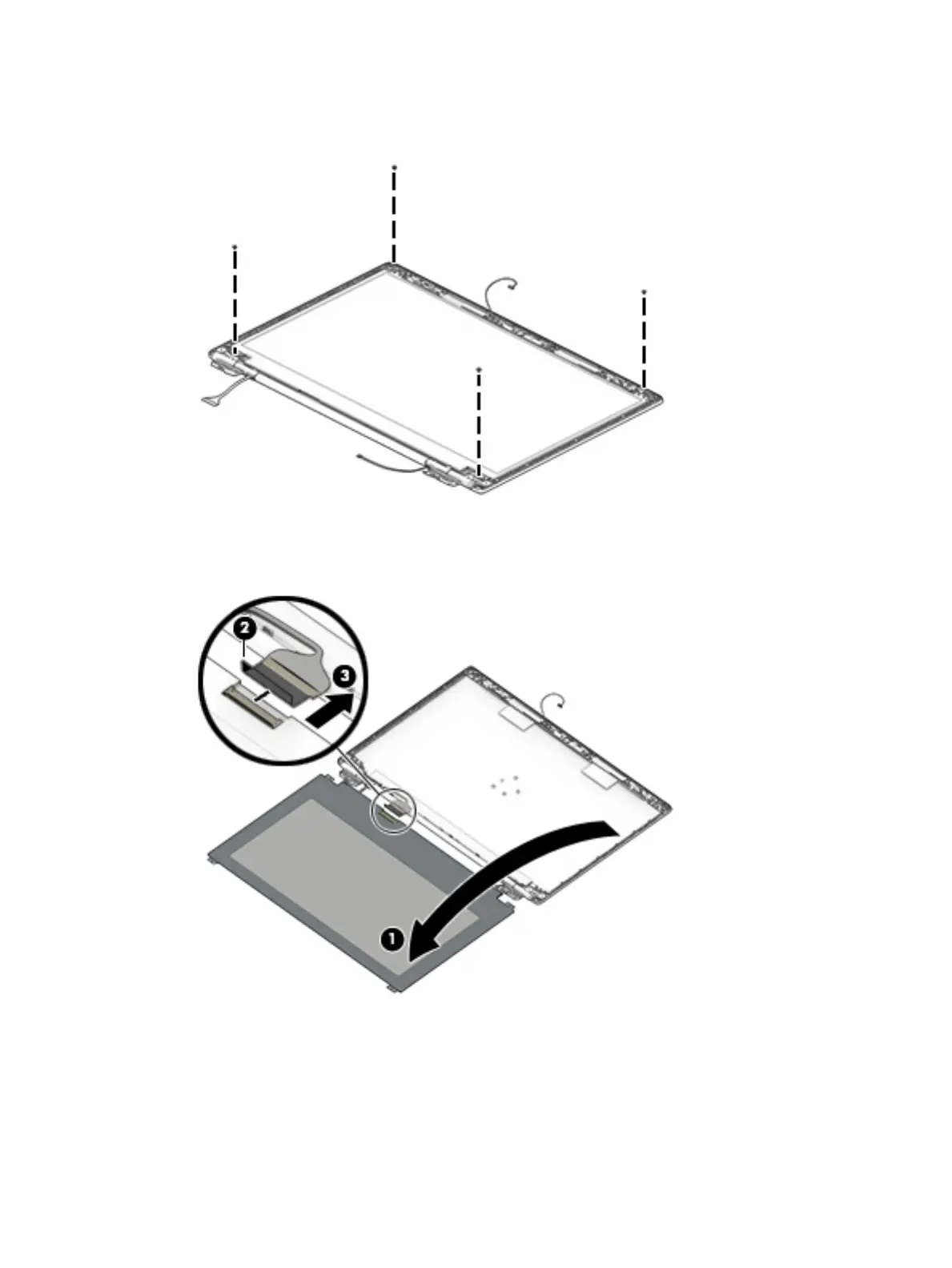

3. If it is necessary to replace the raw display panel, remove the four Phillips screws that secure the display
panel to the display enclosure.
4. Lift the top edge of the display panel (1) and swing it up and forward until it rests upside down in front
of the display enclosure. Remove the tape covering the display panel connector (2), disconnect it from
the display panel (3), and then remove the panel.
5. If it is necessary to replace the hinge brackets:
a. Remove the two Phillips screws from the left and right outer caps (1) and the three Phillips screws
from the hinge (2).
Component replacement procedures 33

HP chromebook 13 g1 Specifications

General

Storage	32 GB eMMC
Graphics	Intel HD Graphics 515
Operating System	Chrome OS
Battery Life	Up to 11.5 hours
Processor	Intel Core m7-6Y75
RAM	4GB or 8GB LPDDR3
Display	13.3" diagonal QHD+ (3200 x 1800) IPS UWVA anti-glare or 13.3" diagonal FHD (1920 x 1080) IPS UWVA anti-glare
Weight	2.86 lbs (1.3 kg)
Ports	2 x USB-C, 1 x USB 3.0, 1 x Headphone/microphone combo
Wireless	802.11ac Wi-Fi, Bluetooth 4.2
Audio	Dual speakers
Webcam	720p HD
