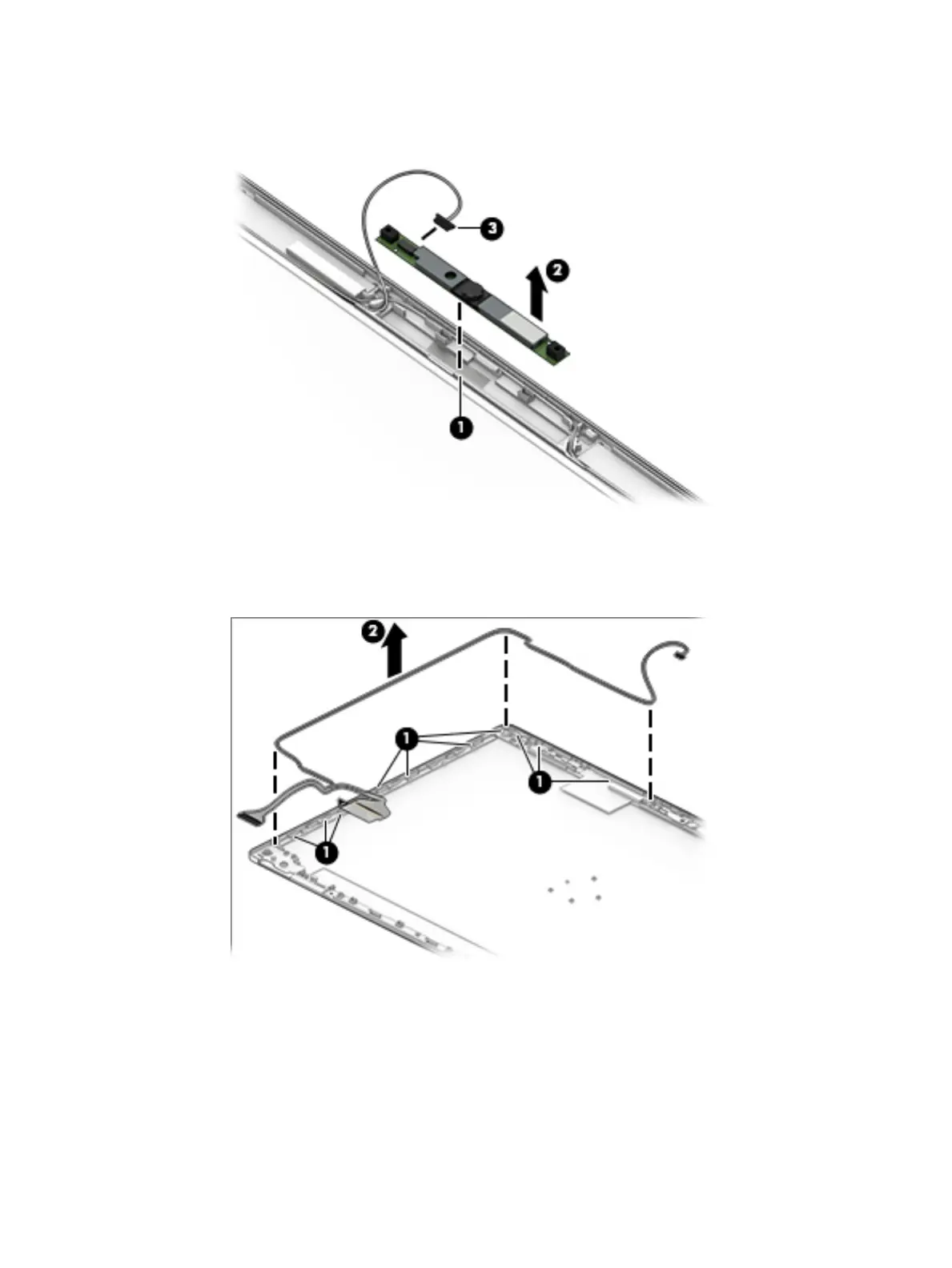

c. Disconnect the module cable (3) from the module.
The camera module is available using spare part number 862692–001.
7. If it is necessary to replace the display cable:
a. Release the cable from the routing path (1) along the display enclosure.
b. Remove the cable (2).
Reverse this procedure to reassemble/install the display assembly.
Component replacement procedures 35
