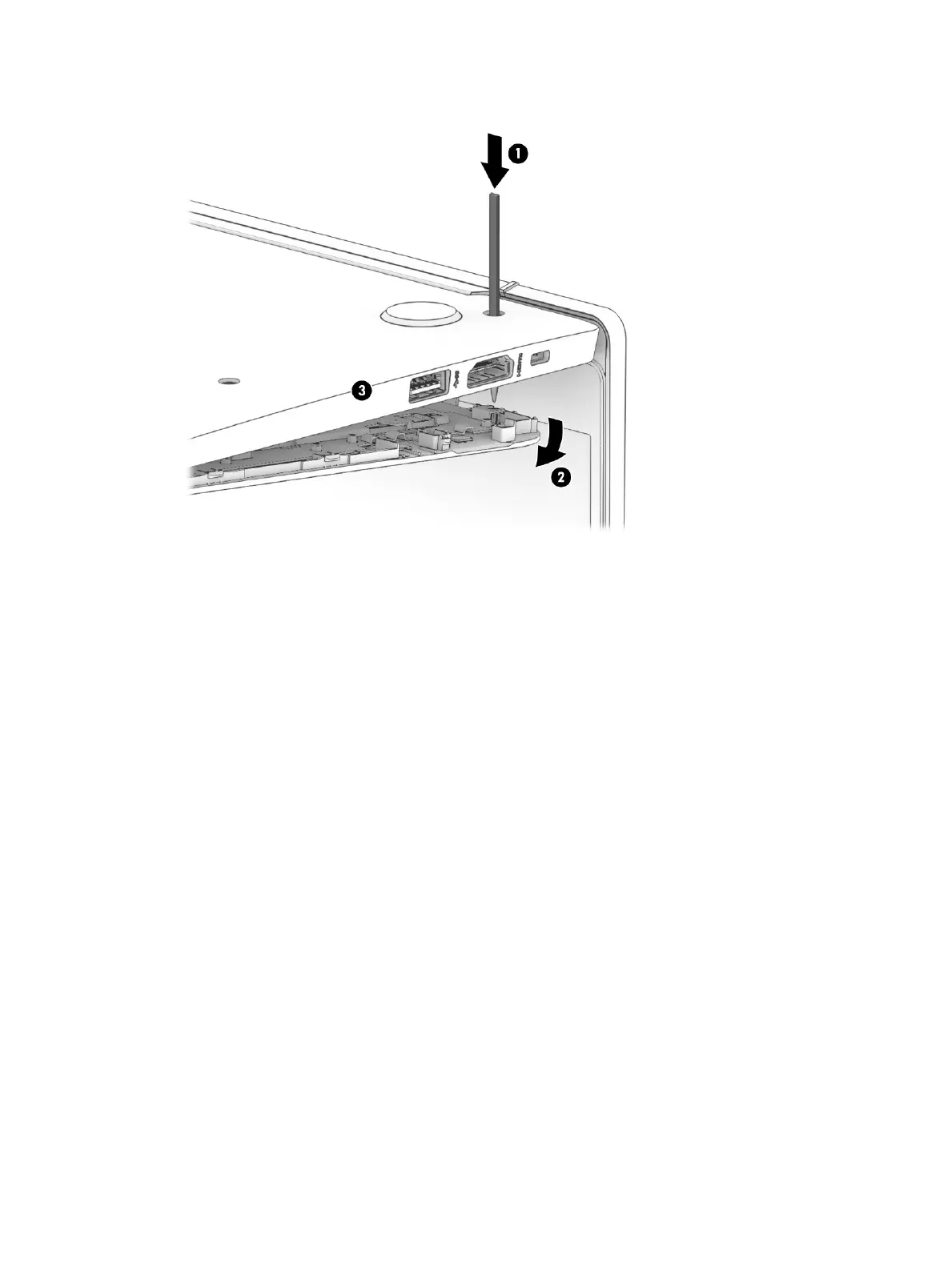

7. Use a thin plastic tool (1) to separate the rear edge of the keyboard/top cover (2) from the bottom cover.
8. Position the computer right side up with the rear toward you.
9. Open the computer as far as it will open.
10. Lift the rear edge of the keyboard/top cover (1) as far as the backlight cable, keyboard cable, sensor board
cable, and touchpad cable allow.
11. Release the shielding (2) that covers the touchpad cable zero insertion force (ZIF) connector, the keyboard
cable ZIF connector, and the backlight cable ZIF connector.
12. Release the ZIF connector (3) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the system board.
13. Release the ZIF connector (4) to which the keyboard cable is connected, and then disconnect the keyboard
cable from the system board.
14. Release the ZIF connector (5) to which the backlight cable is connected, and then disconnect the backlight
cable from the system board.
22 Chapter 5 Removal and replacement procedures
