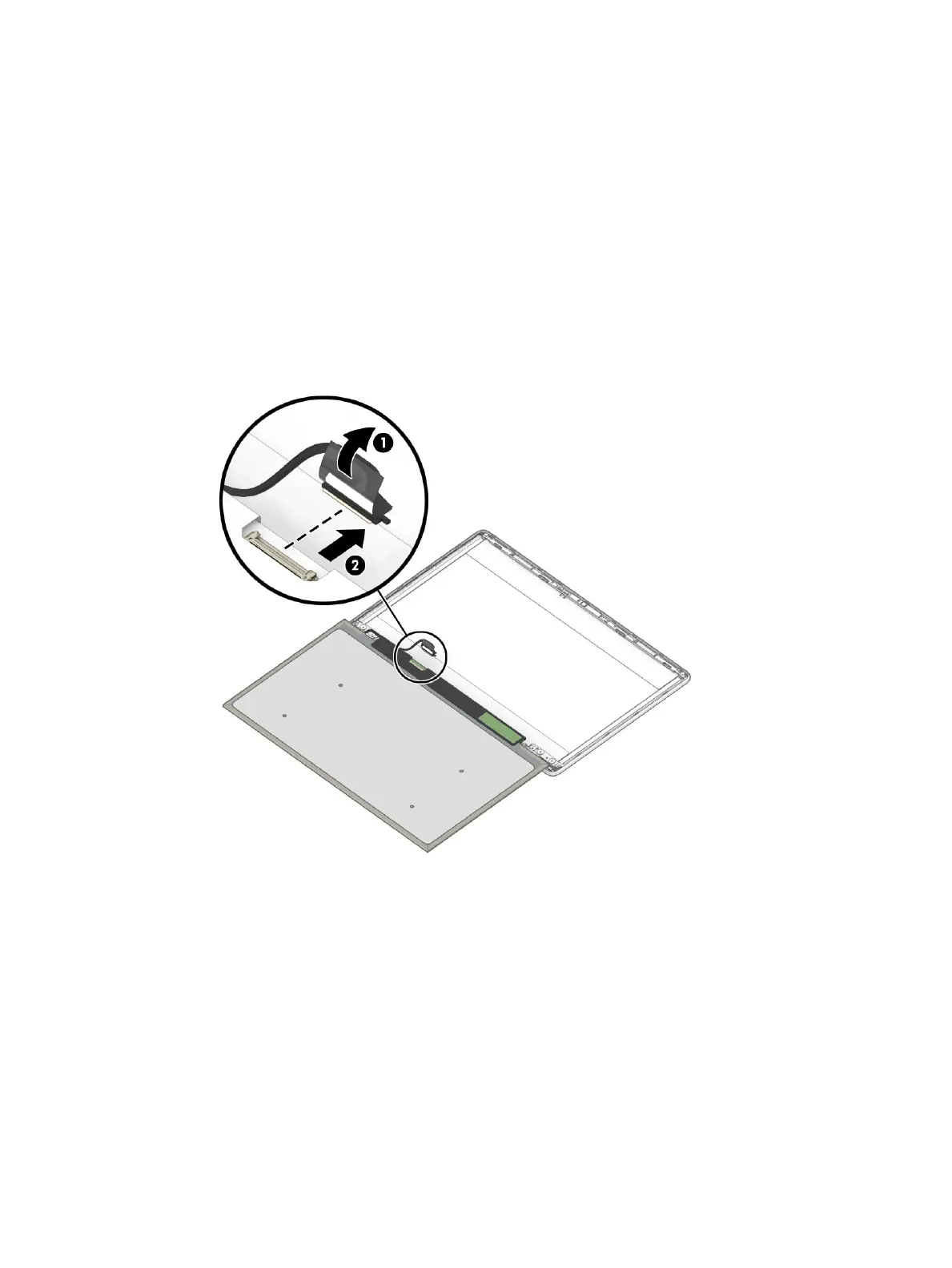

c. Lift the tape from the connector on the rear of the panel (1), and then disconnect the cable from
the panel (2).
Display panels are available as the following spare part numbers:
L91591-001: FHD, antiglare
L91592-001: FHD, antiglare, Touch-on Panel (TOP)
L91593-001: HD, antiglare
L91594-001: HD, BrightView, Touch-on Panel (TOP)
The display cable is available as the following spare part numbers:
L91539-001: Touch displays
L91538-001: Nontouch displays
8. If it is necessary to remove the webcam module:
▲ Lift and release the webcam module from the display back cover (1), and then disconnect the cable
from the module (2).
The webcam is available as spare part number L91540-001.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
