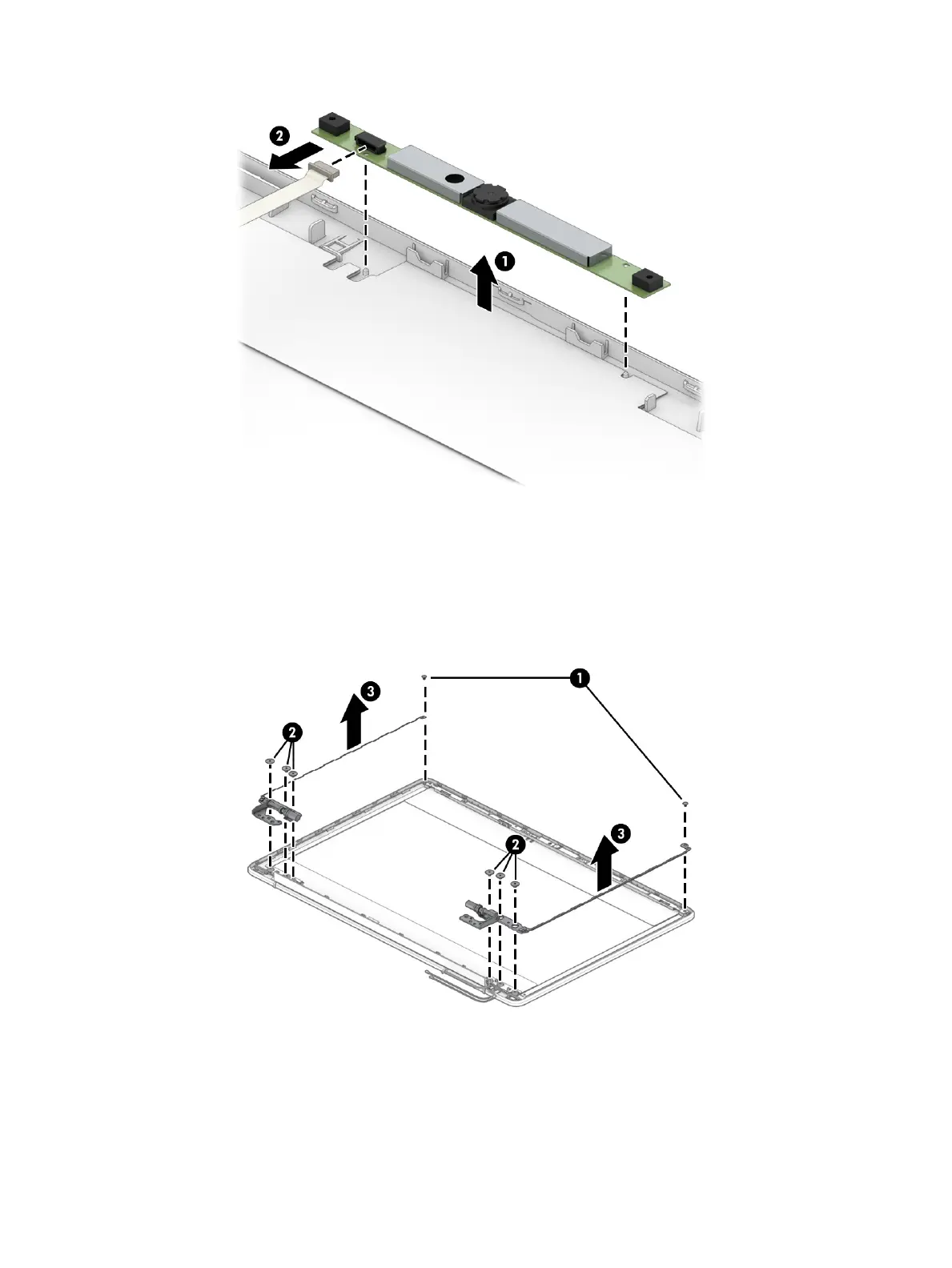

9. If it is necessary to remove the display hinges:
a. Remove the Phillips M2.0 × 2.5 screw (1) from the top of each hinge.
b. Remove the three Phillips M2.5 × 2.5 screws (2) from the bottom of each hinge.
c. Remove the display hinges from the display back cover (3).
The display hinges are available as spare part number L91537-001.
Component replacement procedures 39
