HP Chromebook 15 Series User Manual

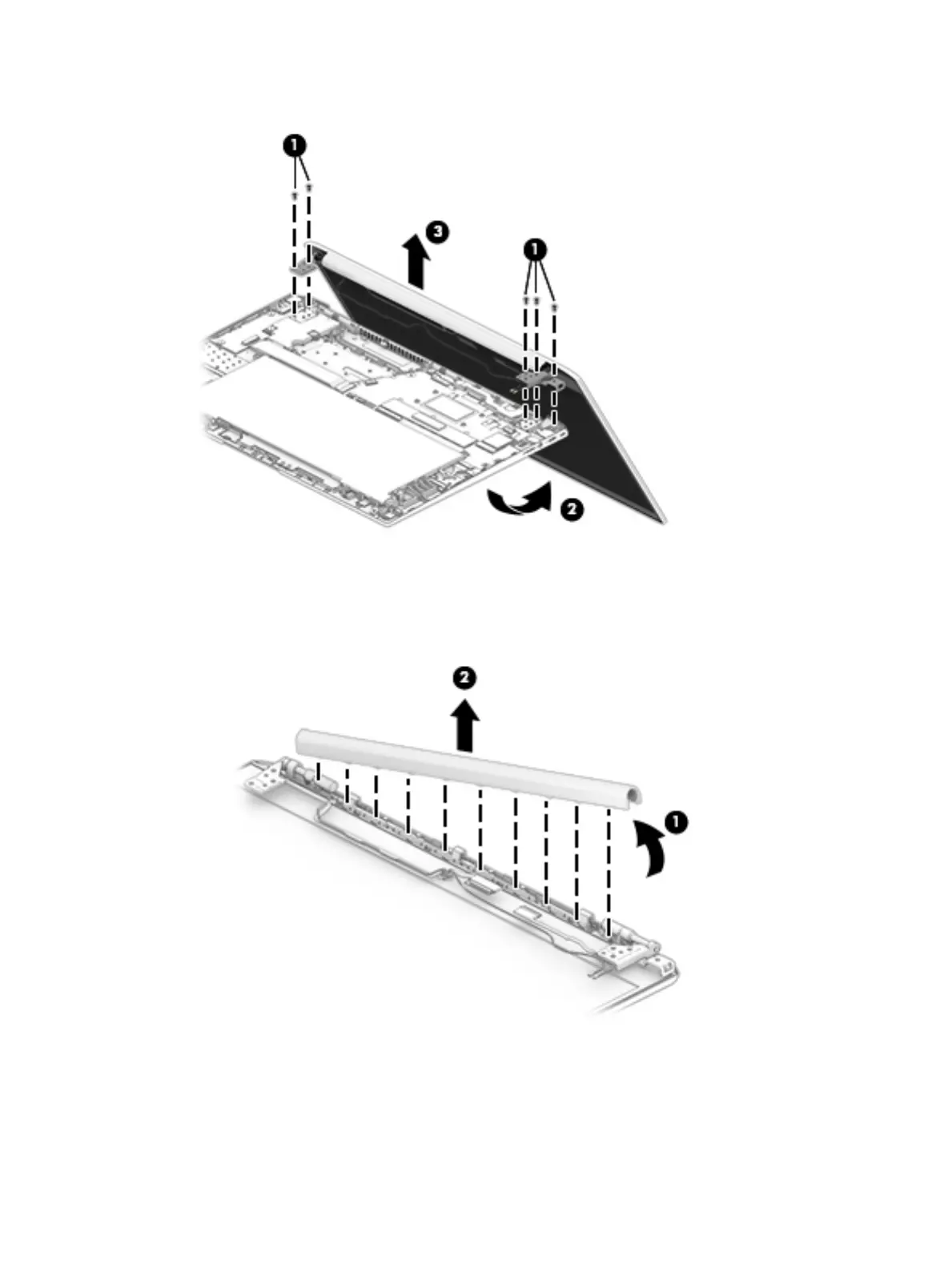

7. Separate the display from the computer (3).
8. If it is necessary to replace the display hinge cover and bezel or any of the display assembly
subcomponents:
a. While using both hands to squeeze the cover, and rotate the cover (1), and then lift it away from
the display (2).
b. Remove the two Phillips M2.0 × 2.0 screws (1) from the bottom of the bezel.
c. Release the top edge of the display bezel (2) from the display assembly.
d. Release the left and right edges of the display bezel (3) from the display assembly.
e. Release the bottom edge of the display bezel (4) from the display assembly.
Component replacement procedures 39

HP Chromebook 15 Series Specifications

General

Operating System	Chrome OS
RAM	4GB, 8GB
Storage	32GB, 64GB eMMC
Display	HD (1366 x 768) or FHD (1920 x 1080)
Ports	2x USB-C 3.1, 2x USB-A 3.1, 1x 3.5mm Headphone/Microphone Combo Jack, 1x MicroSD Card Reader
Wireless	802.11ac Wi-Fi
