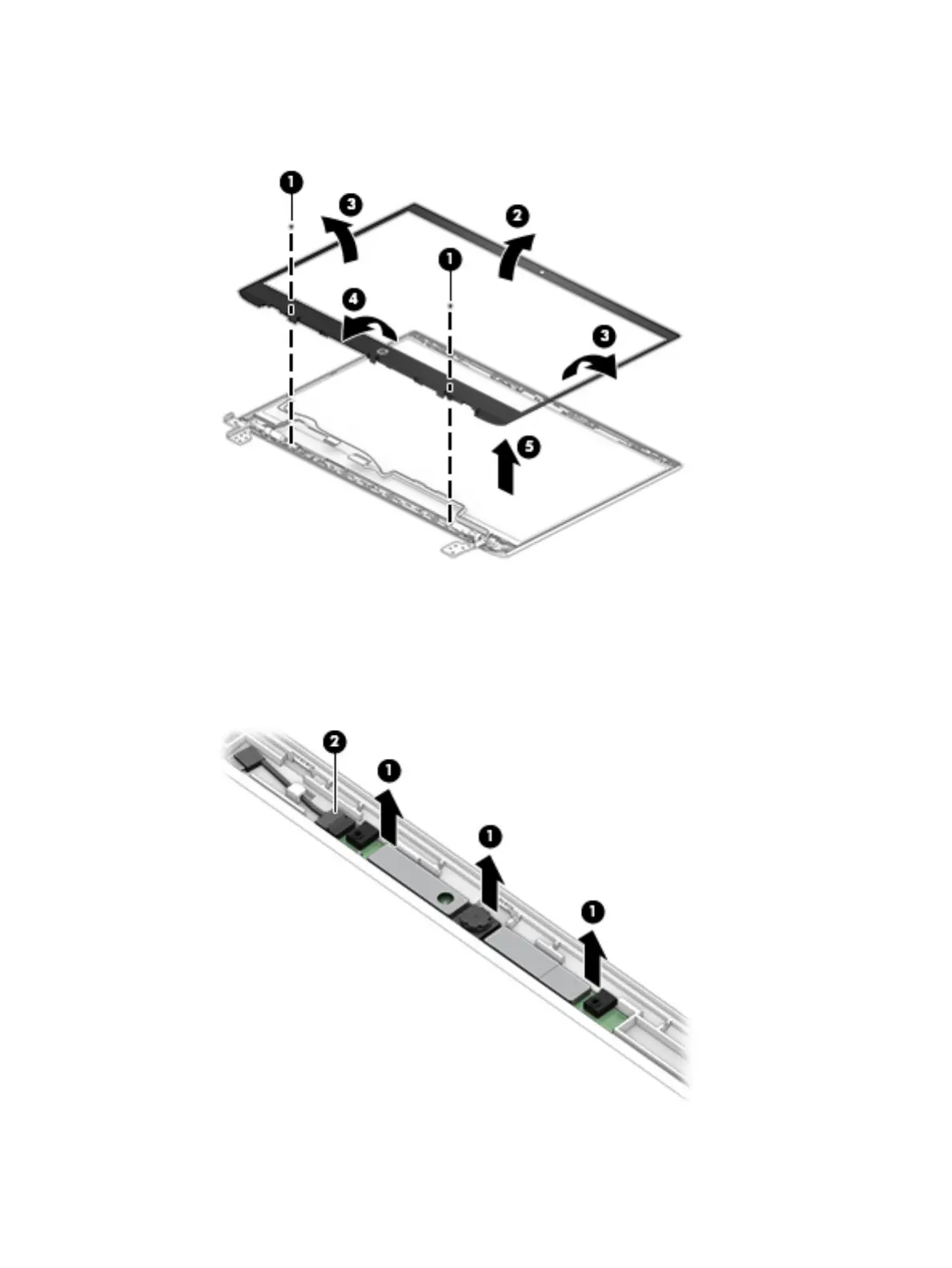

f. Remove the display bezel (5).
The display bezel is available using spare part number L54824-001.
9. If it is necessary to replace the webcam module:
a. Lift evenly on both sides of the webcam to detach the it from the display back cover (1). (The
webcam module is attached to the display back cover with double-sided adhesive.)
b. Disconnect the cable (2) from the webcam module.
The webcam module is available using spare part number L54830-001.
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
