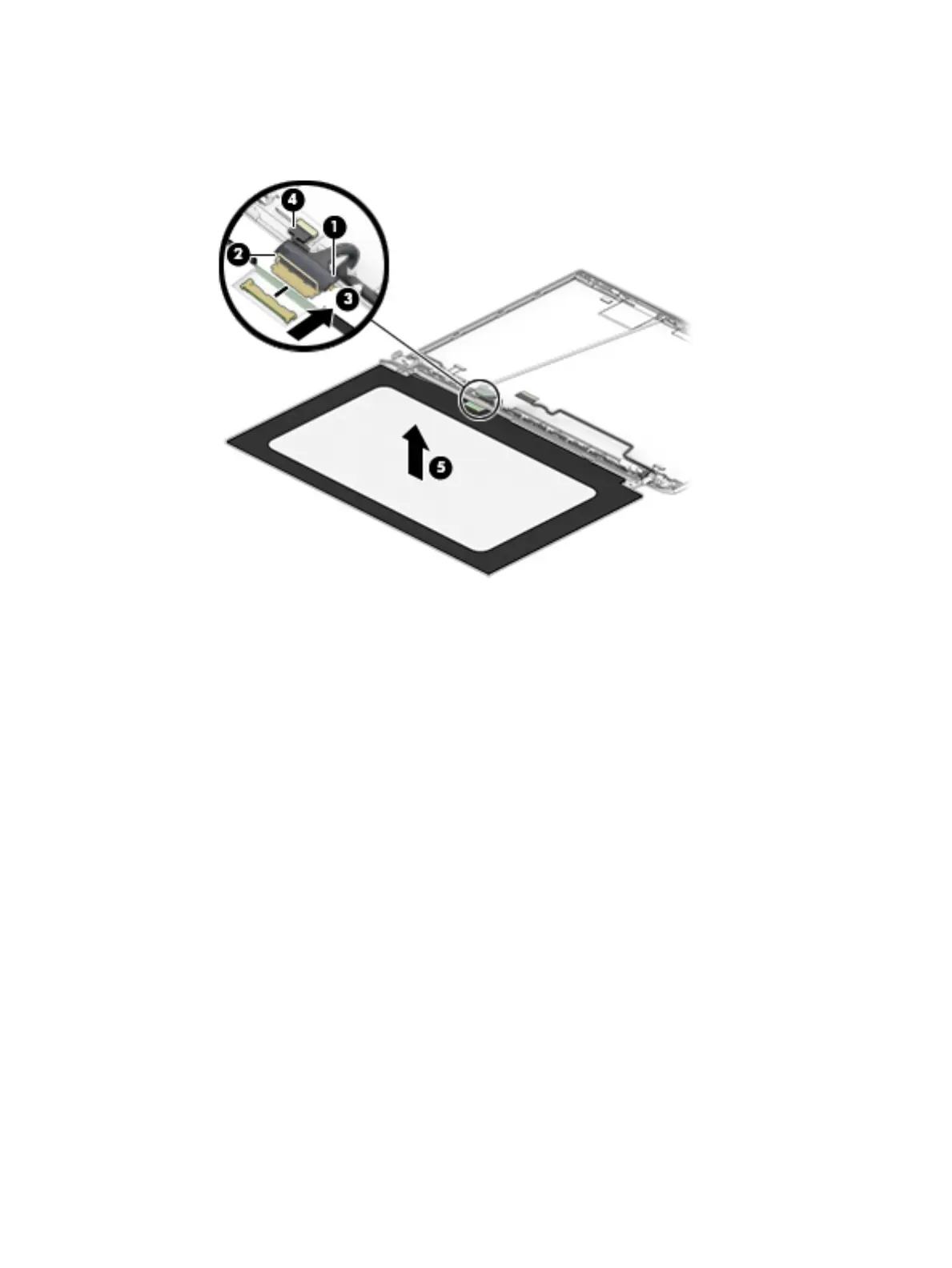

g. Remove the display panel (5).
The display panel is available using spare part number L54852-001 for 220 nit panels and
L54853-001 for 250 nit panels.
13. If it is necessary to replace the display hinges:
a. Remove the four Phillips M2.5 × 2.5 screws (1) from the bottom of each hinge.
b. Remove the Phillips M2.0 × 2.5 screw (2) from the top of each hinge.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
