Table 2-2 Left-side components and their descriptions (continued)
Component Description
(3) USB Type-C power connector and SuperSpeed
port
Connects an AC adapter that has a USB Type-C connector,
supplying power to the computer and, if needed, charging the
computer battery.
– and –
Connects a USB device, provides high-speed data transfer,
and (for select products) charges small devices (such as a
smartphone) when the computer is on or in Sleep mode.
NOTE: Use a standard USB Type-C charging cable or cable
adapter (purchased separately) when charging a small
external device.
– and –
Connects a display device that has a USB Type-C connector,
providing DisplayPort™ output.
(4) AC adapter and battery light ● White: The AC adapter is connected and the battery is
fully charged.
● Amber: The AC adapter is connected and the battery is
charging.
● O: The battery is not charging.
(5) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent,
b
ut it might not prevent the computer from being mishandled
or stolen.
Display

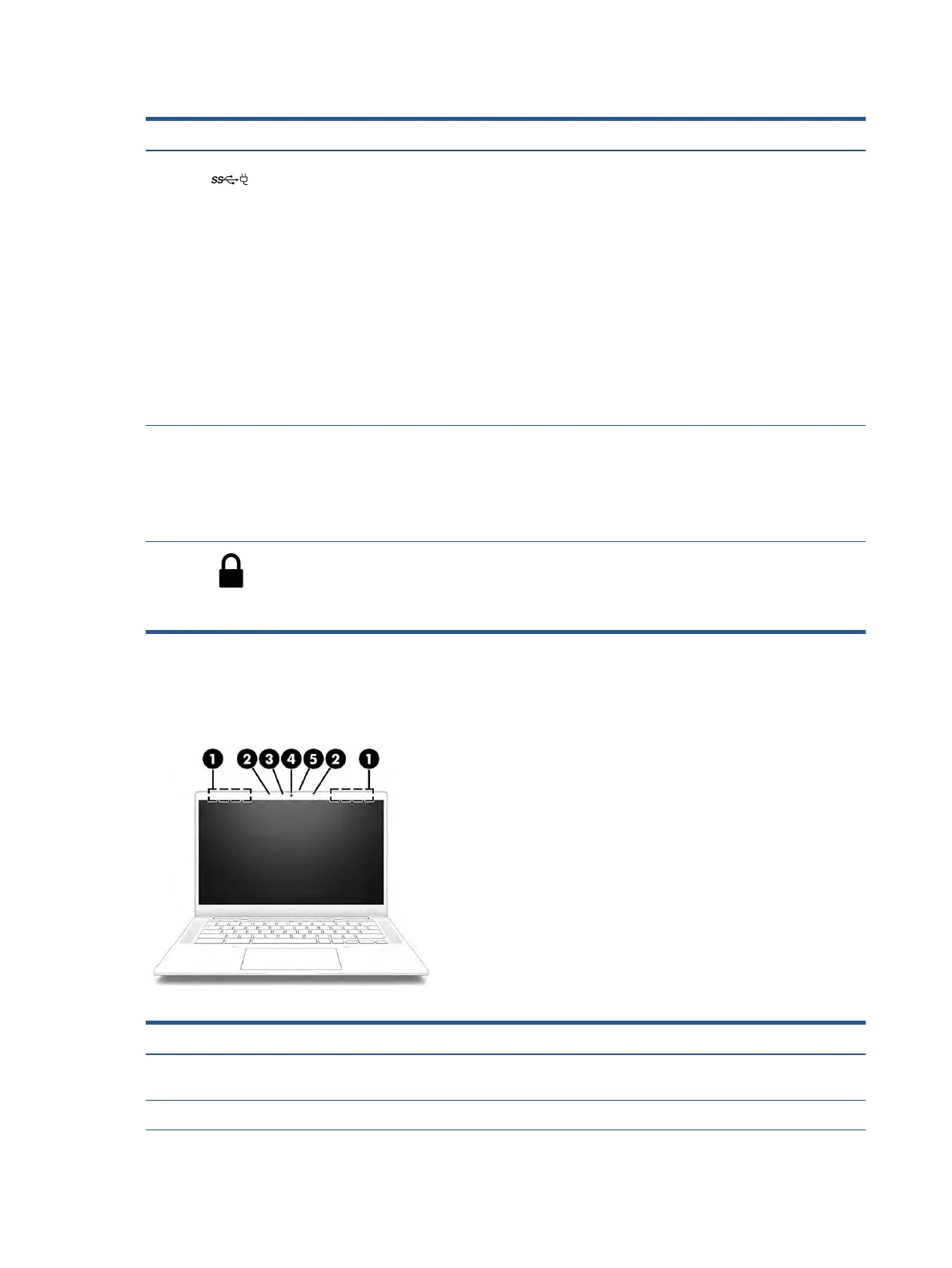

Use the illustration and table to identify the components on the display.
Table 2-3 Display components and their descriptions
Component Description
(1) WLAN antennas* Send and receive wireless signals to communicate with wireless local
ar
ea networks (WLANs).
(2) Internal microphones Record sound.
6 Chapter 2 Components
