h. Remove the display panel cable (6).
The display panel cable is available using spare part number L70823-001.

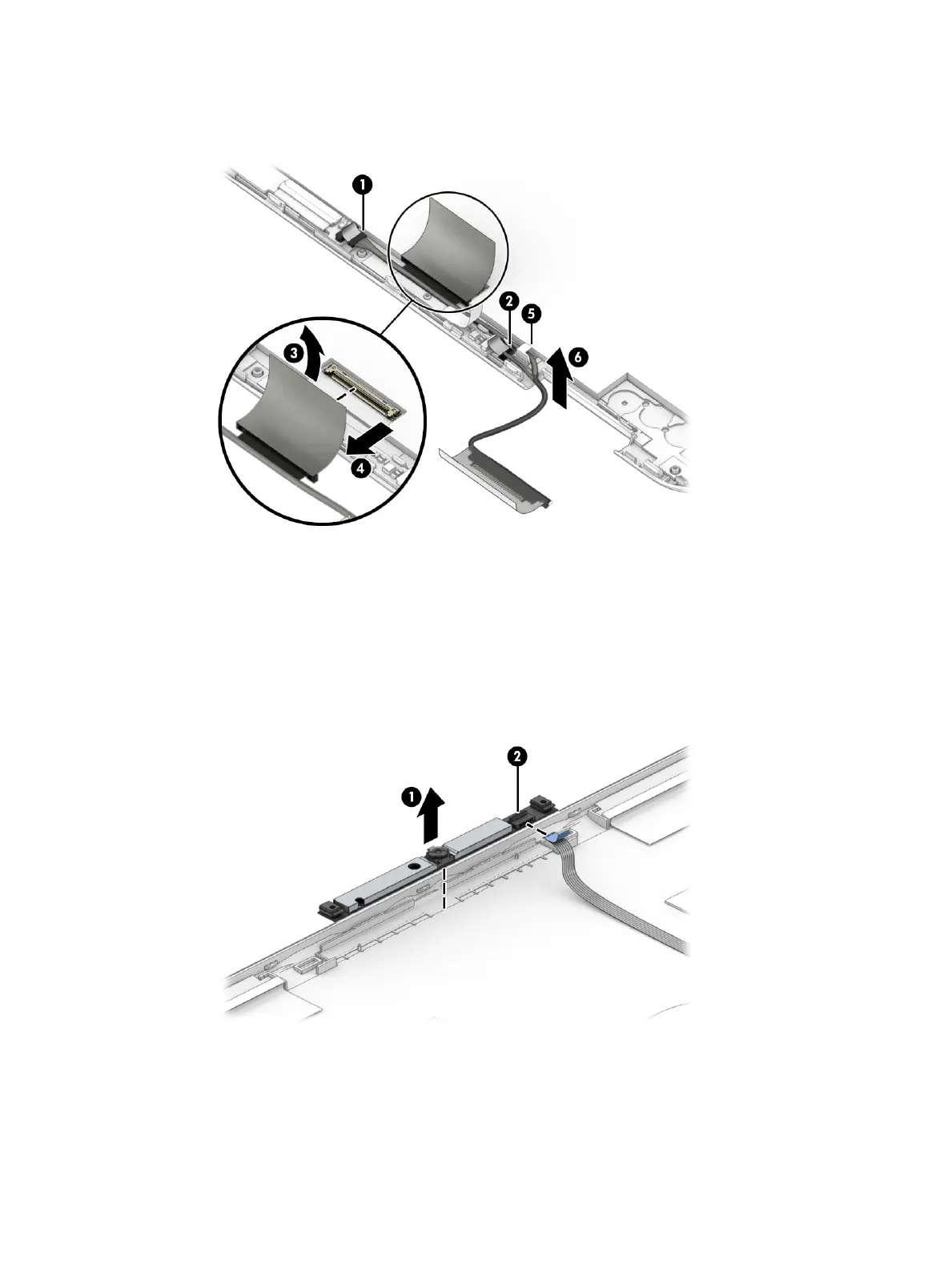

15. If it is necessary to replace the webcam/microphone module:
a. Remove the display panel assembly.
b. Detach the webcam/microphone module (1) from the display back cover. (The webcam/microphone
module is attached to the display back cover with double-sided adhesive.)
c. Release the ZIF connector (2) to which the webcam/microphone module cable is connected, and then
disconnect the webcam/microphone module cable from the webcam/microphone module.
The webcam/microphone module is available using spare part number L70812-001.
16. If it is necessary to replace the webcam/microphone module cable:
a. Remove the display panel assembly.
b. Release the ZIF connector (1) to which the webcam/microphone module cable is connected, and then
disconnect the webcam/microphone module cable from the webcam/microphone module.
34 Chapter 5 Removal and replacement procedures
