Power connector and cable
Description Spare part number
Power connector and cable 808155-013
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the computer feet (see Computer feet on page 23).
5. Remove the keyboard/top cover (see Keyboard/top cover on page 24).
6. Remove the WLAN module (see WLAN module on page 27).
7. Remove the Hall sensor board (see Hall sensor board on page 28).
8. Remove the connector board and cable (see Connector board and cable on page 29).
9. Remove the battery (see Battery on page 30).
10. Remove the speakers (see Speakers on page 32).
11. Remove the system board (see System board on page 33).
12. Remove the heat sink (see Heat sink on page 35).
13. Remove the display assembly (see Display assembly on page 37).

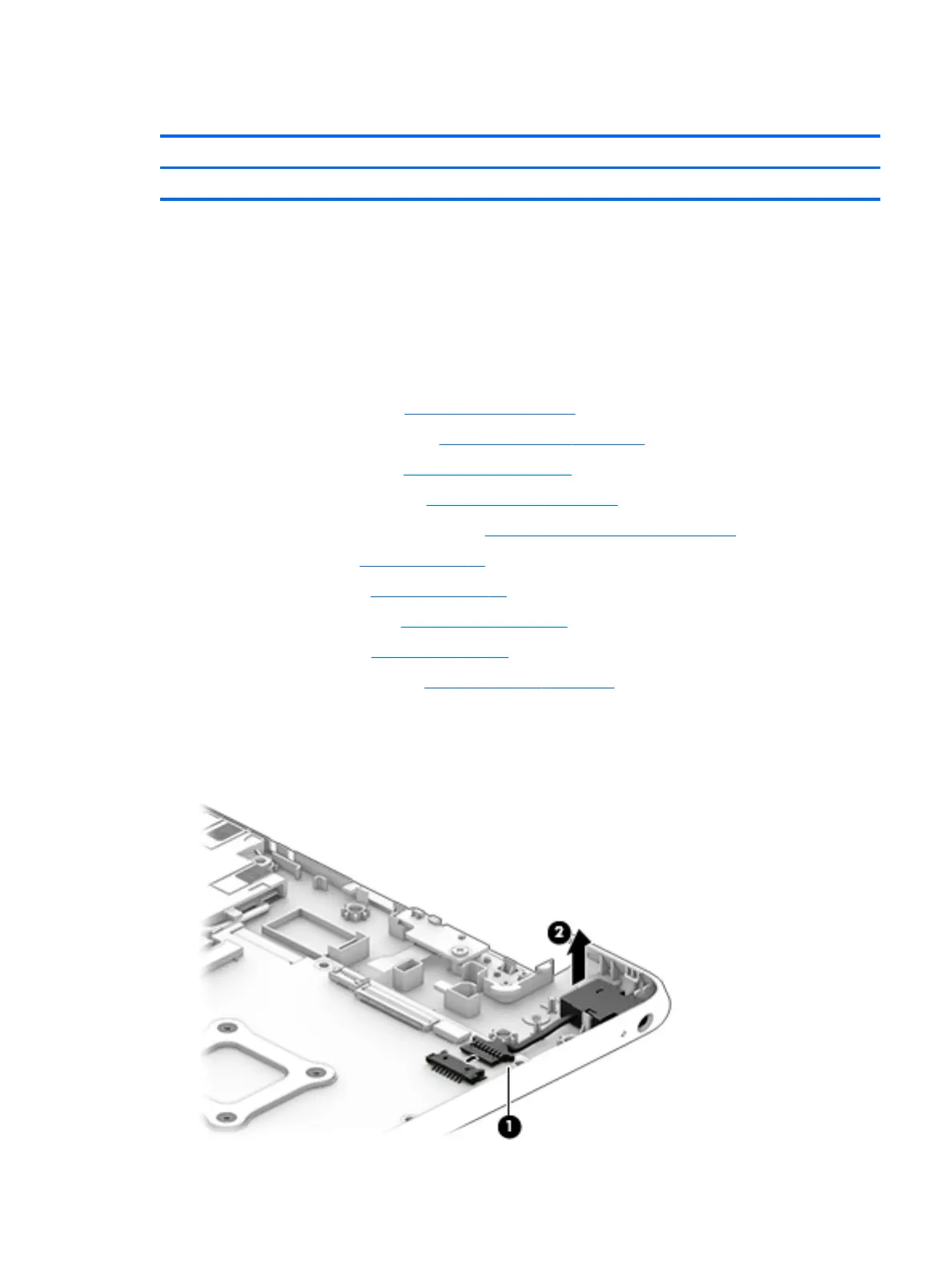

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Remove the power connector and cable (2).
Component replacement procedures 43
