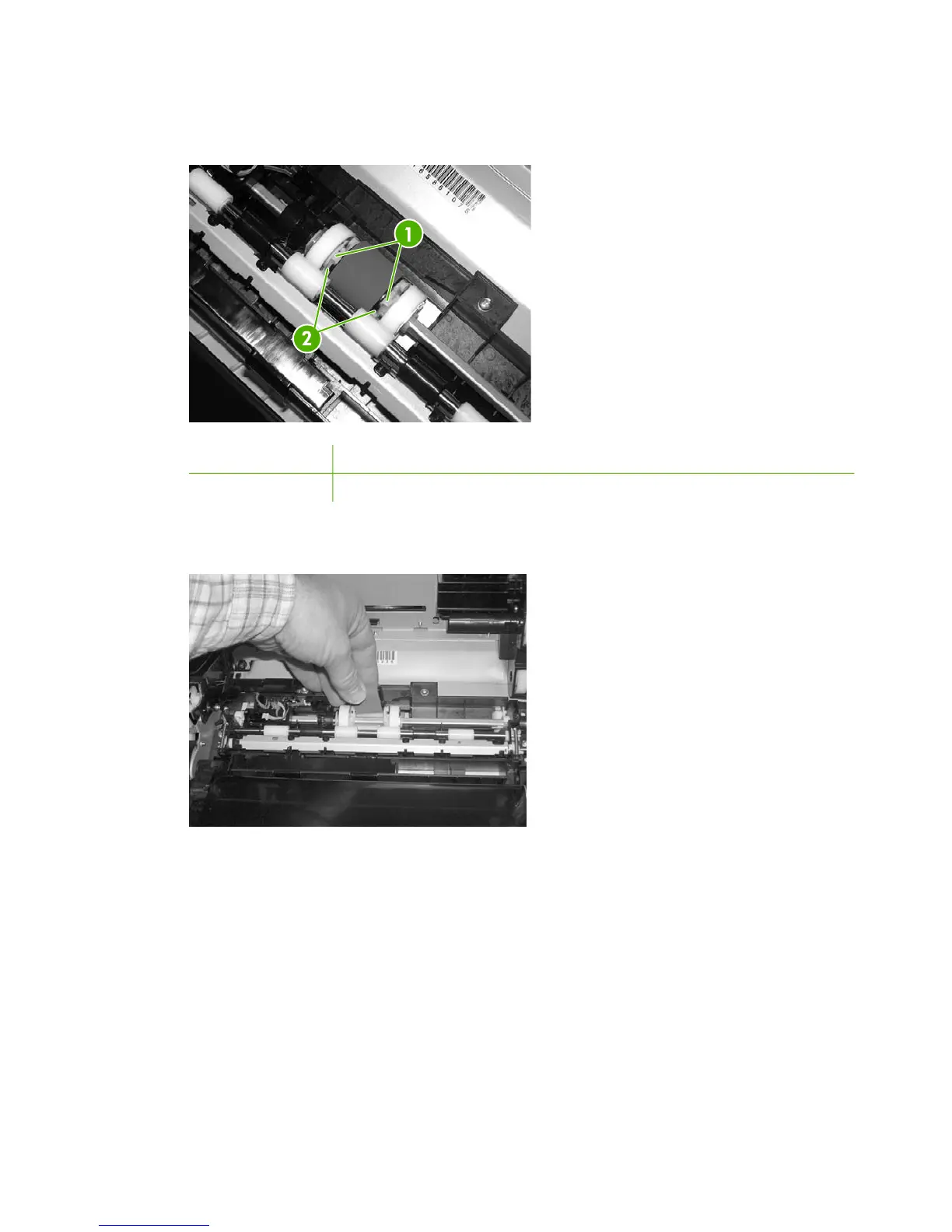

5. Using your thumbs or two small screwdrivers, simultaneously press out on the two white tabs
that restrain the black tabs on the pickup roller. When performed correctly, the bottom end of the
pickup roller releases from its seat.
1 White tabs
2 Black tabs
6. Rotate the paper pickup roller toward the back and remove it.
To replace the paper-pickup roller, follow steps 1 through 6 above in reverse order.
98 Chapter 5 Removal and replacement ENWW
