Image formation system
The image-formation system, which forms a toner image on media, consists of several
interdependent systems:
●
Electrostatic latent-image formation
● Developing
●
Transfer
●
Fuser
●
Drum cleaning
The MFP includes four print cartridges that contain the toner that is used to create the image on the
media. Toner is applied in the following order, using only the colors necessary for a specific image:
magenta (M), cyan (C), yellow (Y), and black (Bk).

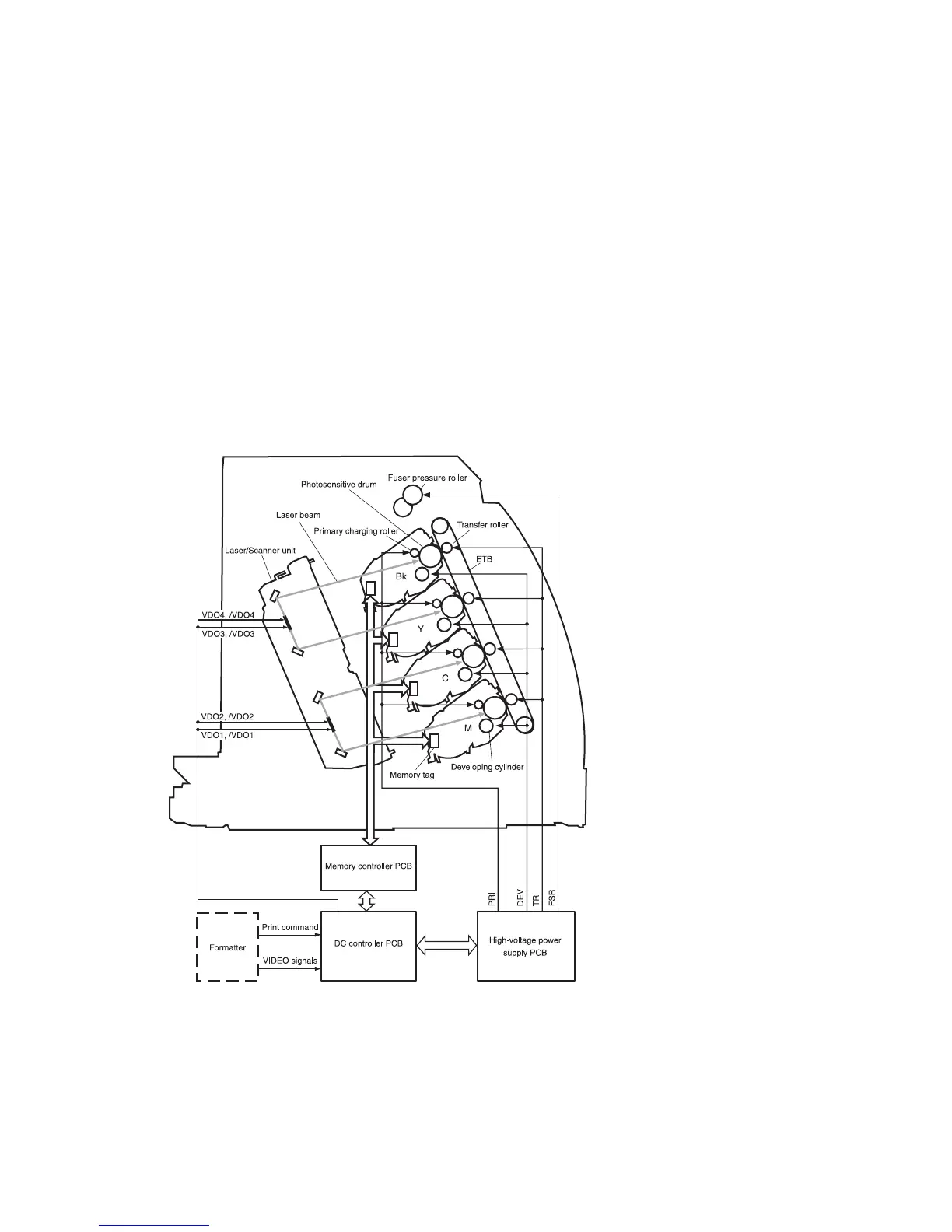

The following figure illustrates the image formation system.
Figure 4-2 Image formation system
ENWW Image formation system 49
