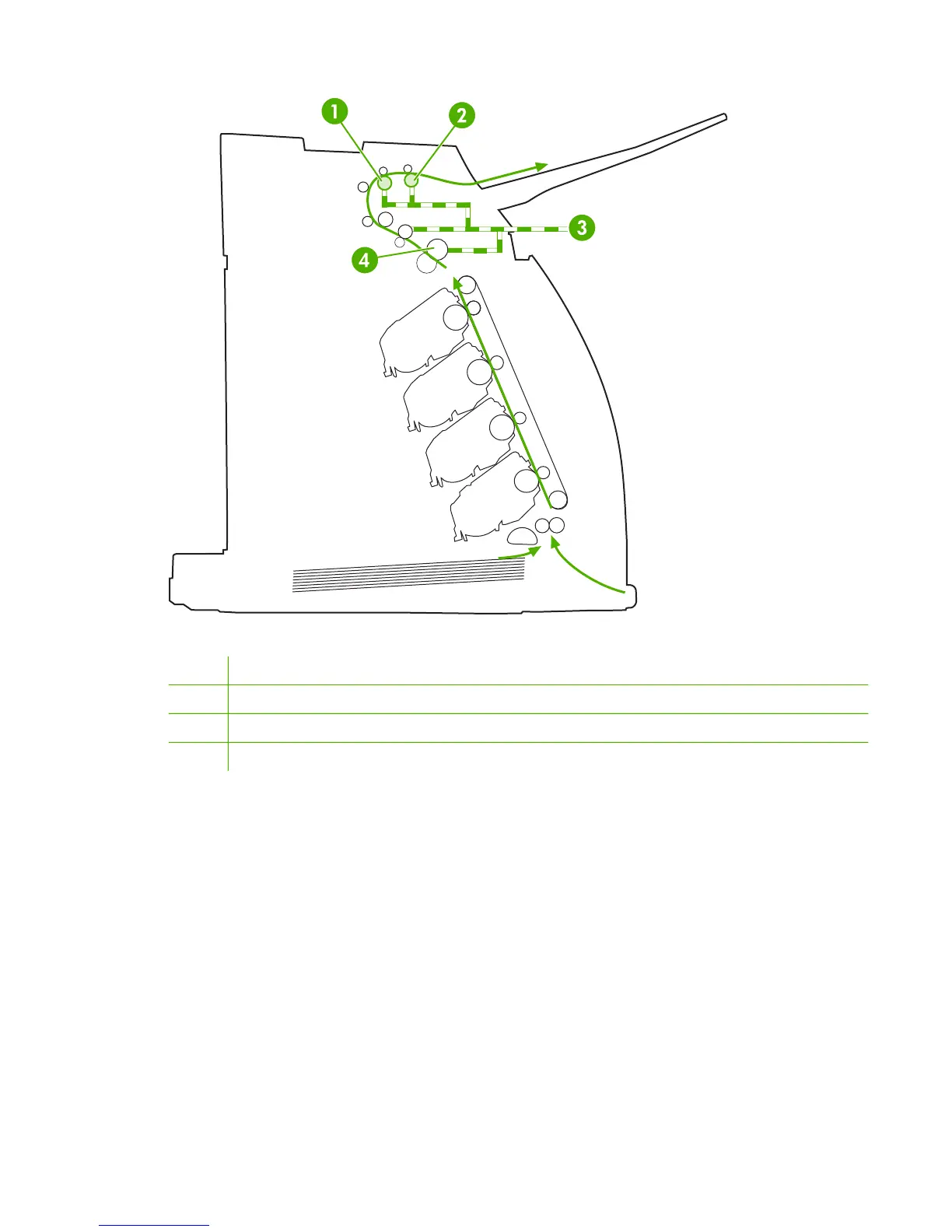

Figure 4-3 Paper pickup and feed system
1 Face-up delivery roller #1
2 Face-up delivery roller #2
3 Fusing/delivery motor
4 Fusing pressure roller
Manual feed slot pickup mechanism
This mechanism picks up one sheet of paper only that is inserted into the single-sheet priority feed
slot and then into the printer. This printer does not have a pickup roller in the single-sheet priority
feed slot. Instead of a pickup roller, the registration roller picks up paper. The presence of paper in
the single-sheet priority feed slot is detected by the single-sheet priority feed slot paper sensor
(SR3). The following is the operational sequence of the single-sheet priority feed slot pickup.
1. If paper is set into the single-sheet priority feed slot during STBY mode, the single-sheet priority
feed slot paper sensor (SR3) detects it.
2. When the paper is detected, the DC controller drives the pickup motor (M3) for 5 seconds. The
paper is fed approximately 5 mm (0.2 inch) and is then caught by the registration roller.
3. After the above operational sequence, the paper is fed by the drive of the registration roller.
ENWW Pickup and feed system 51
