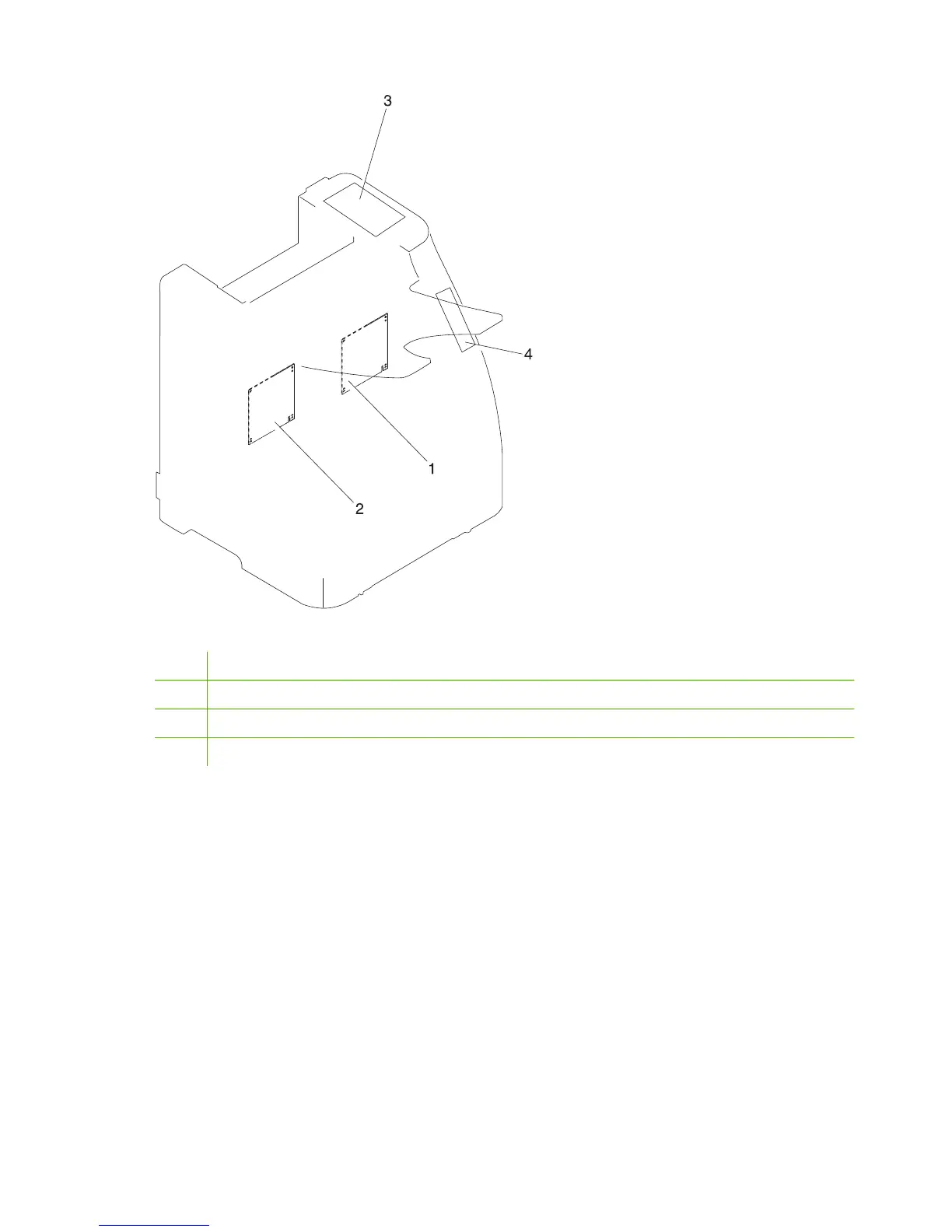

Figure 4-5 Location of printed circuit assemblies
1 Formatter PCA
2 DC controller PCA
3 Control-panel PCA
4 Memory-card PCA
250-sheet tray solenoid and printed circuit locations
The following illustration shows the locations of the 250-sheet tray solenoid and printed circuit
assembly.
54 Chapter 4 Operational theory ENWW
