Use the following procedure to replace the ETB.

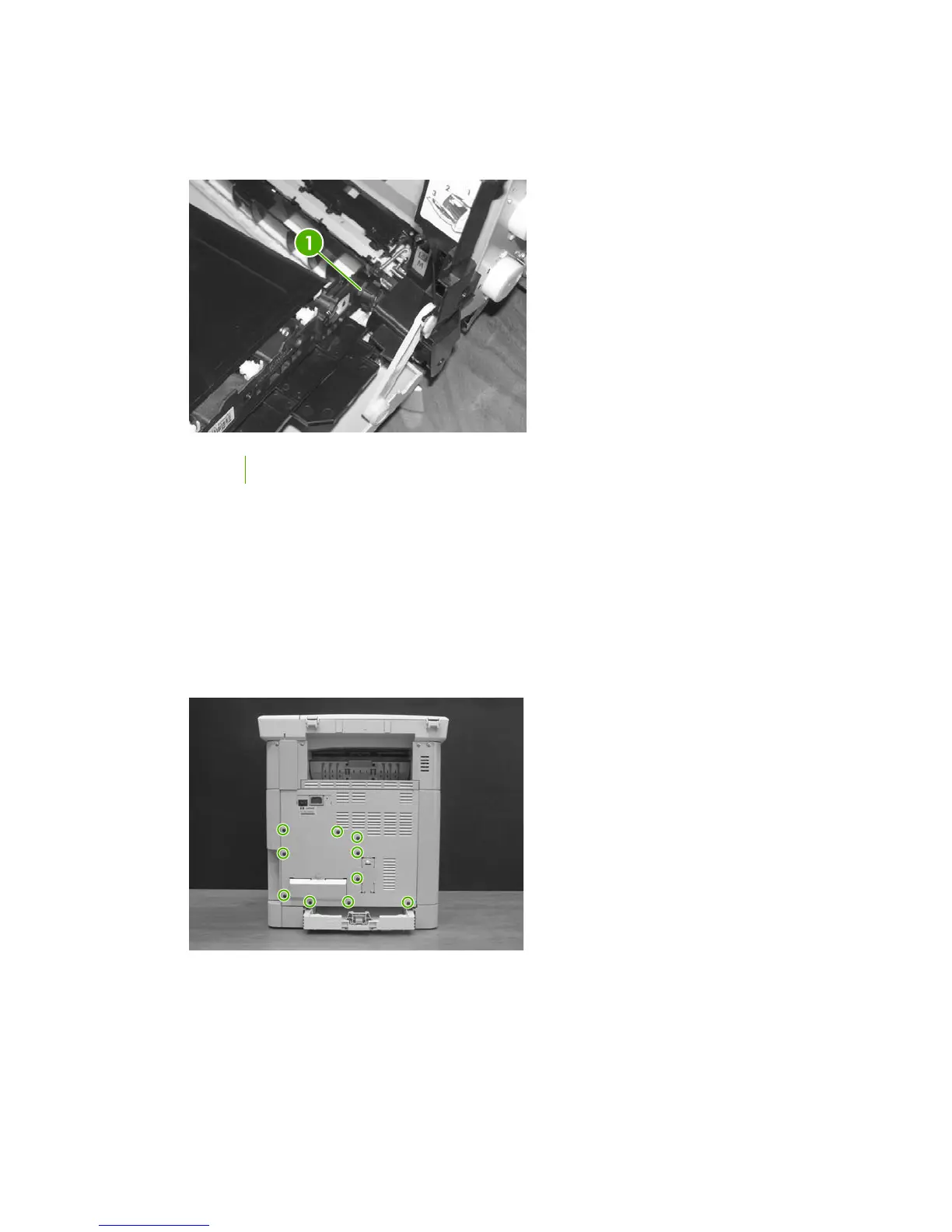

1. Align each foot of the ETB with the respective holes, securing the right side first and then the
left side.
1 Alignment location
2. Complete replacement by following the removal steps in reverse order.
Scanner removal and replacement
Use the following procedure to remove the scanner.
1. Unplug the power cable.
2. Remove 10 screws and take off the rear plate.
78 Chapter 5 Removal and replacement ENWW
