Click Directly to this computer using a USB cable (a "direct connection"), and then click Next. The
Connect Your Device Now dialog box appears.

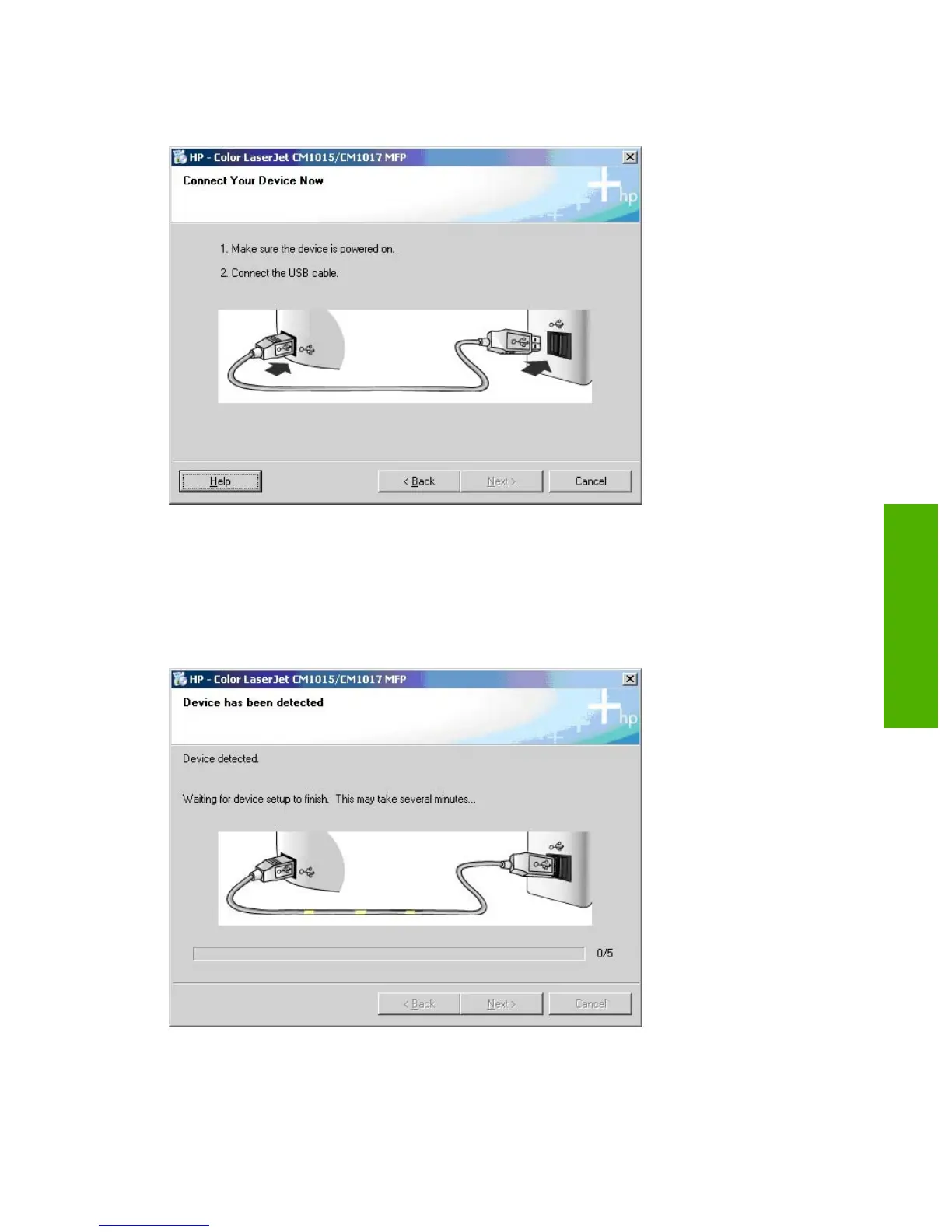

Figure 3-49 Microsoft Windows Server 2003 install – Connect Your Device Now dialog box
When the Connect to your Device Now screen appears, make sure that the HP Color
LaserJet CM1015 MFP/CM1017 MFP is turned on. Then attach the USB cable to the computer and to
the HP Color LaserJet CM1015 MFP/CM1017 MFP.
The Next button is enabled when the USB connection is complete. Click it to continue the installation.
Figure 3-50 Microsoft Windows Server 2003 install – Device has been detected dialog box
ENWW Printing-system software installation 163
