The DC controller rotates the drum motor to drive the photosensitive drum, developing roller, and the
primary-charging roller.

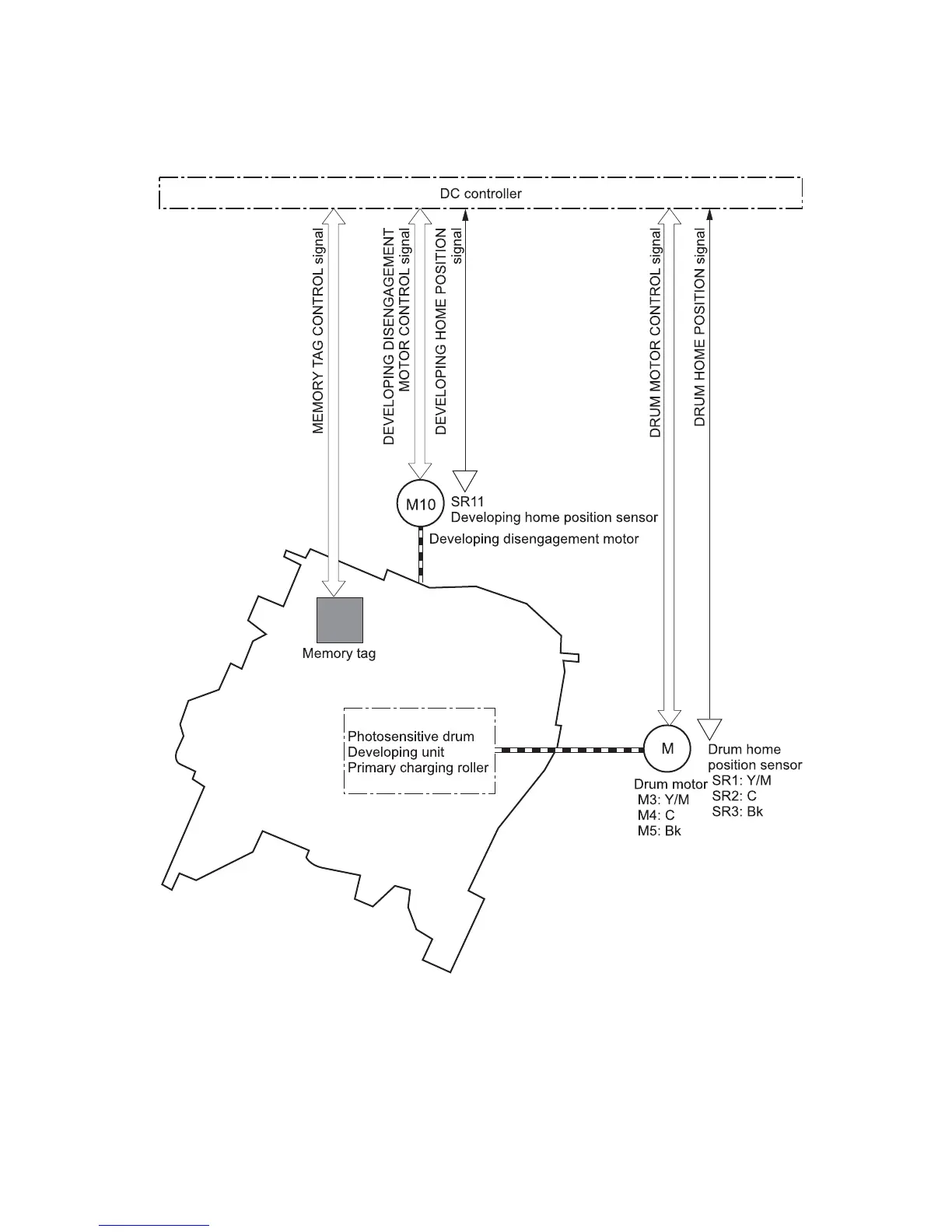

Figure 5-21 Print-cartridge system
The DC controller rotates the drum motor to drive the photosensitive drum, developing unit, and primary
charging roller.
The memory tag is a non-volatile memory chip that stores information about the usage for the print
cartridge.
140 Chapter 5 Theory of operation ENWW
