Pickup, feed, and delivery system
The pickup, feed, and delivery system uses a series of rollers to move the paper through the product.

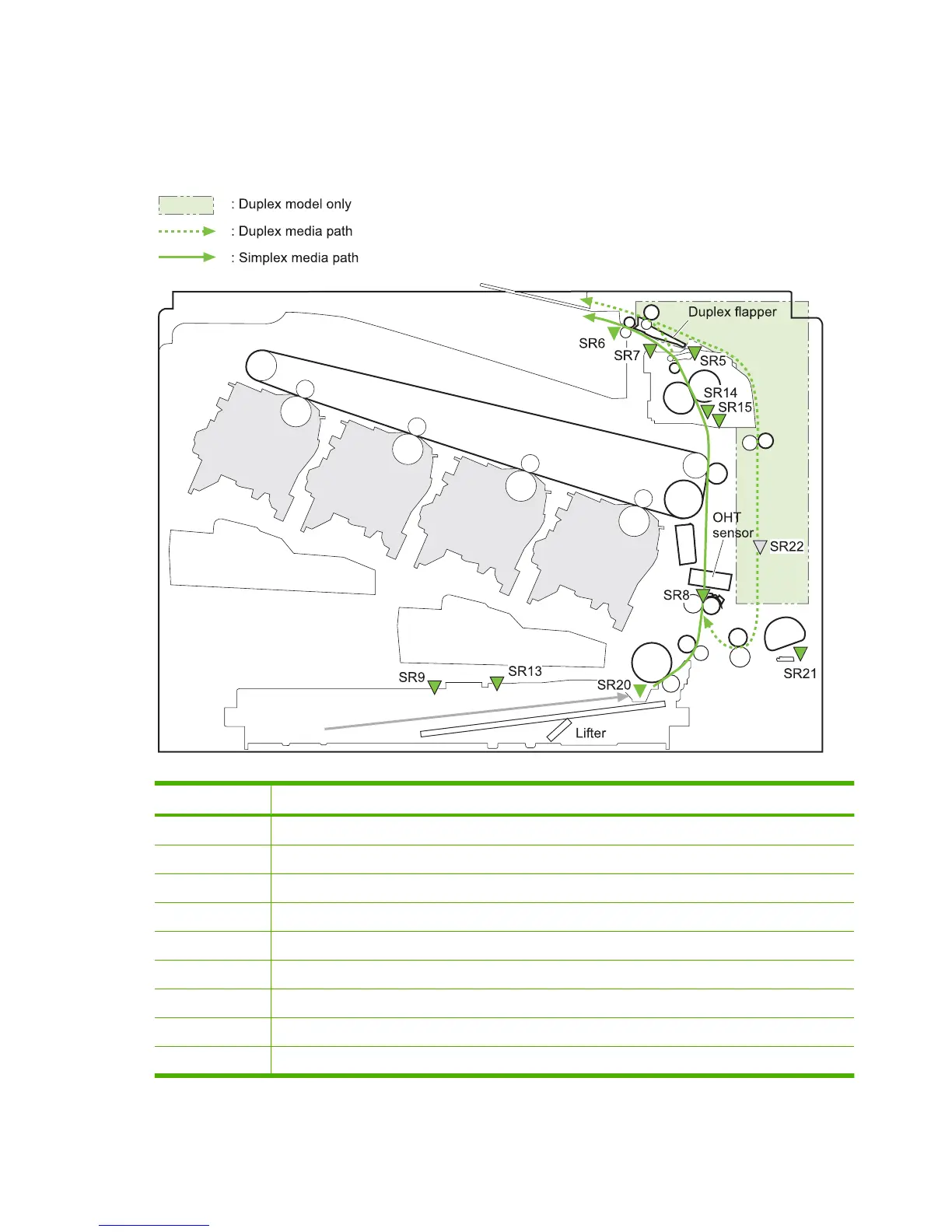

Figure 5-27 Switches and sensors for the pickup, feed, and delivery system
Y
M
C
K
Table 5-12 Switches and sensors for the pickup, feed, and delivery system
Abbreviation Component
SR5 Fuser (fixing) delivery sensor
SR6 Delivery tray media full sensor
SR7 Fuser (fixing) pressure release sensor
SR8 TOP (top of page) sensor
SR9 Cassette-media stack-surface sensor
SR13 Cassette presence sensor
SR14 Loop sensor 1
SR15 Loop sensor 2
SR20 Cassette media-presence sensor
