The DC controller lowers the lifting plate when no printing occurs to prevent media damage and pickup
failure. If a print operation does not occur for a specified time, the DC controller reverses the lifter motor
and moves the lifter rack until the cassette media-stack surface sensor stops detecting it.

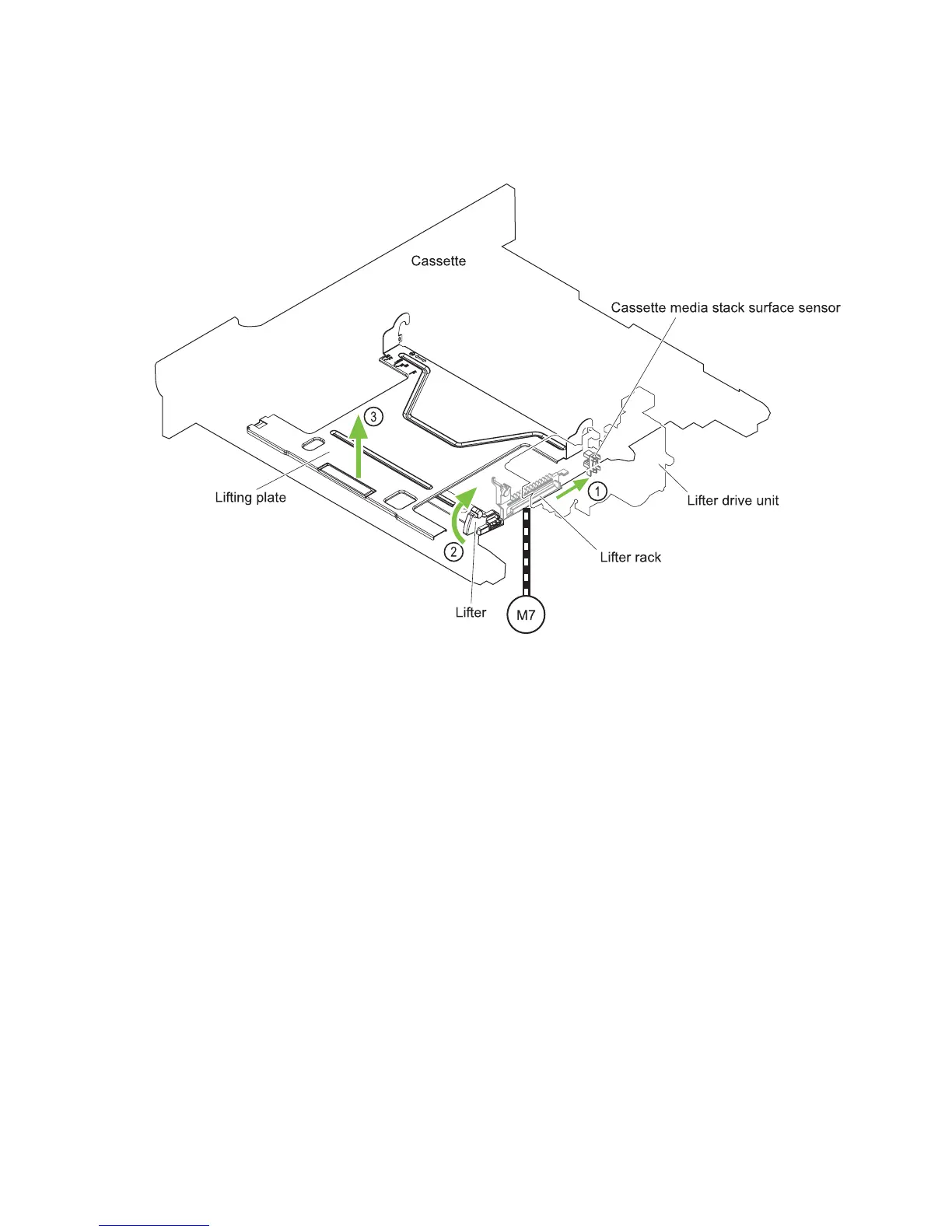

Figure 5-33 Cassette lift mechanism
154 Chapter 5 Theory of operation ENWW
