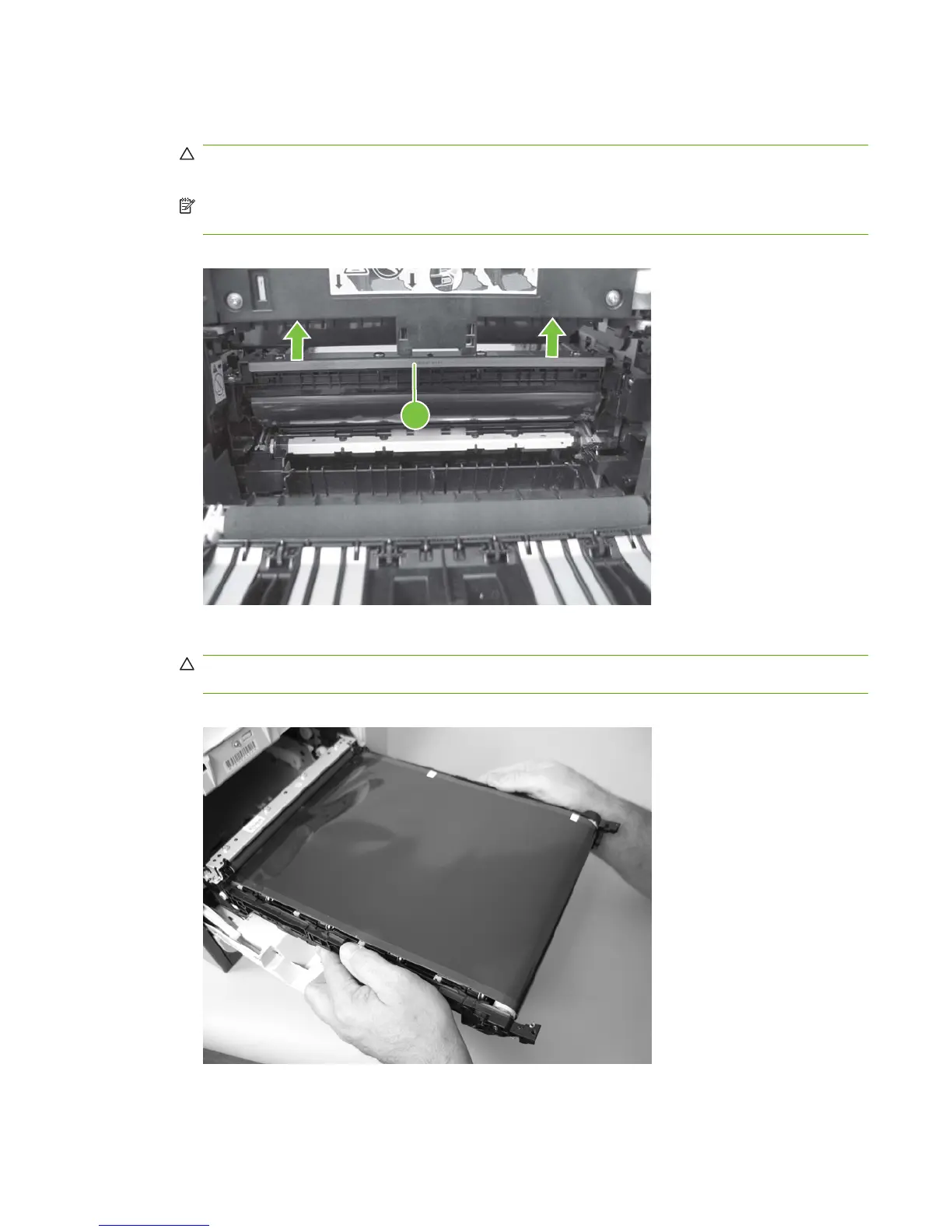

6. To release the ITB, you might have to pen the rear door, and carefully lift up on the sheet-metal
portion (callout 3).
CAUTION: Avoid touching the black plastic transfer belt. Skin oils on the belt might cause print-
quality problems.
NOTE: You might need to reach in through the front door and support the front portion of the ITB
to keep it from falling back into place as you perform this step.
Figure 6-25 Remove the ITB (5 of 6)
3
7. Carefully pull the ITB straight out of the product to remove it.
CAUTION: Avoid touching the black plastic transfer belt. Skin oils on the belt might cause print-
quality problems. Handle the ITB as shown below.
Figure 6-26 Remove the ITB (6 of 6)
ENWW Components and major assemblies 99
