Reinstall the ITB
Use this procedure to verify that the ITB is correctly reinstalled.
1. Use the control panel to print a Diagnostics page. See
Control-panel menus on page 15 and
Reports menu on page 16.
2. Verify that rows one through four, columns A through I (callout 1) contain hexadecimal numbers.
If these rows and columns are all zero, ensure that the calibration sensor was correctly reinstalled.
The sensor must be correctly positioned and fit securely against the chassis before the mounting
screws are installed. See
Figure 6-22 Remove the ITB (2 of 6) on page 97 and Figure 6-21 Remove
the ITB (1 of 6) on page 97.

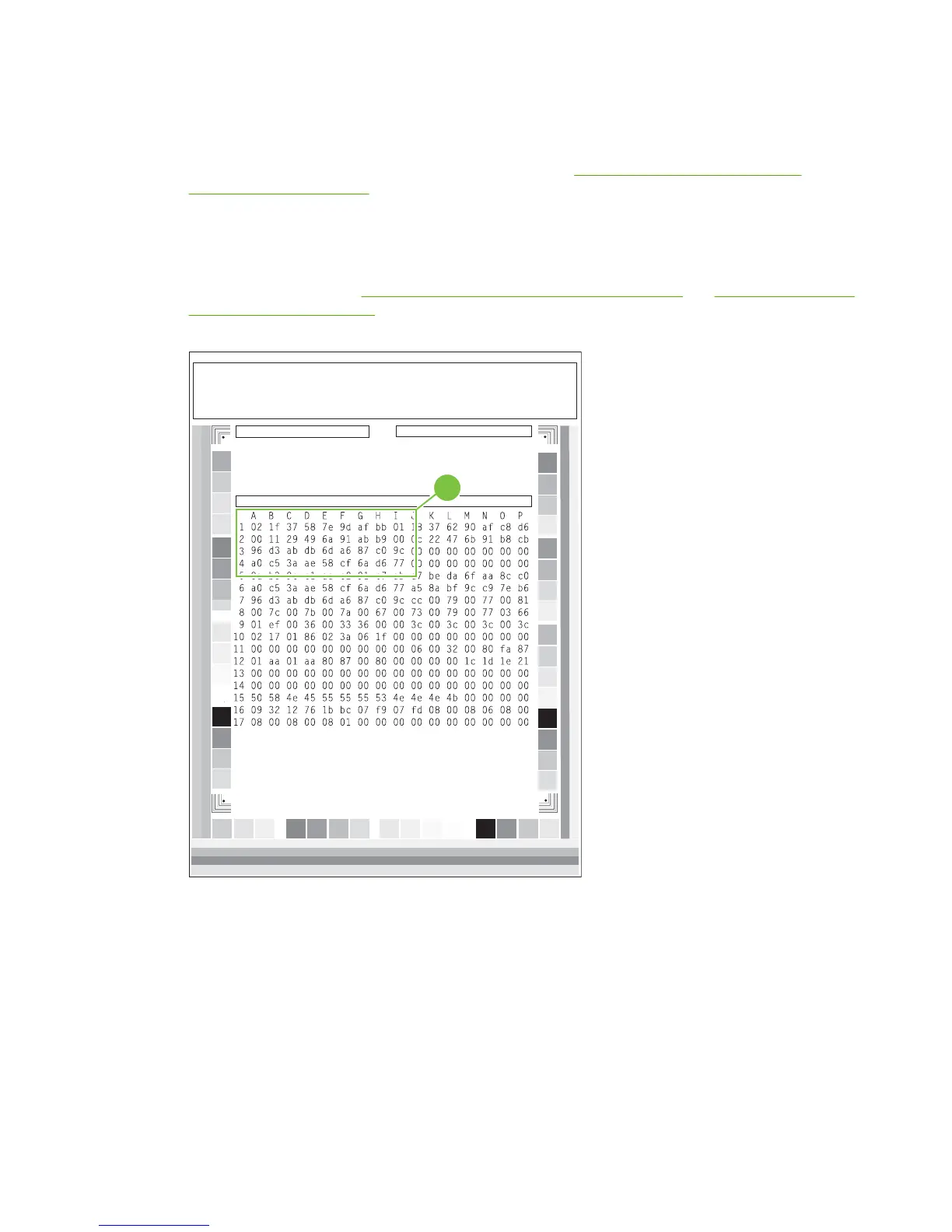

Figure 6-27 Reinstall the ITB
HP Color LaserJet CP2025dn
Diagnostics Page
Calibration Information
Color Density
Power-On Calibration : 15 Minutes
Calibration Timing: 48 Hours
C M Y K
Contrast 0 0 0 0
Highlights 0 0 0 0
Midtones 0 0 0 0
Shadows 0 0 0 0
Parameters
04
1
