Rear door (duplex product)
1. Open the rear door.
2. Use the green handle to close the duplex-feed assembly.

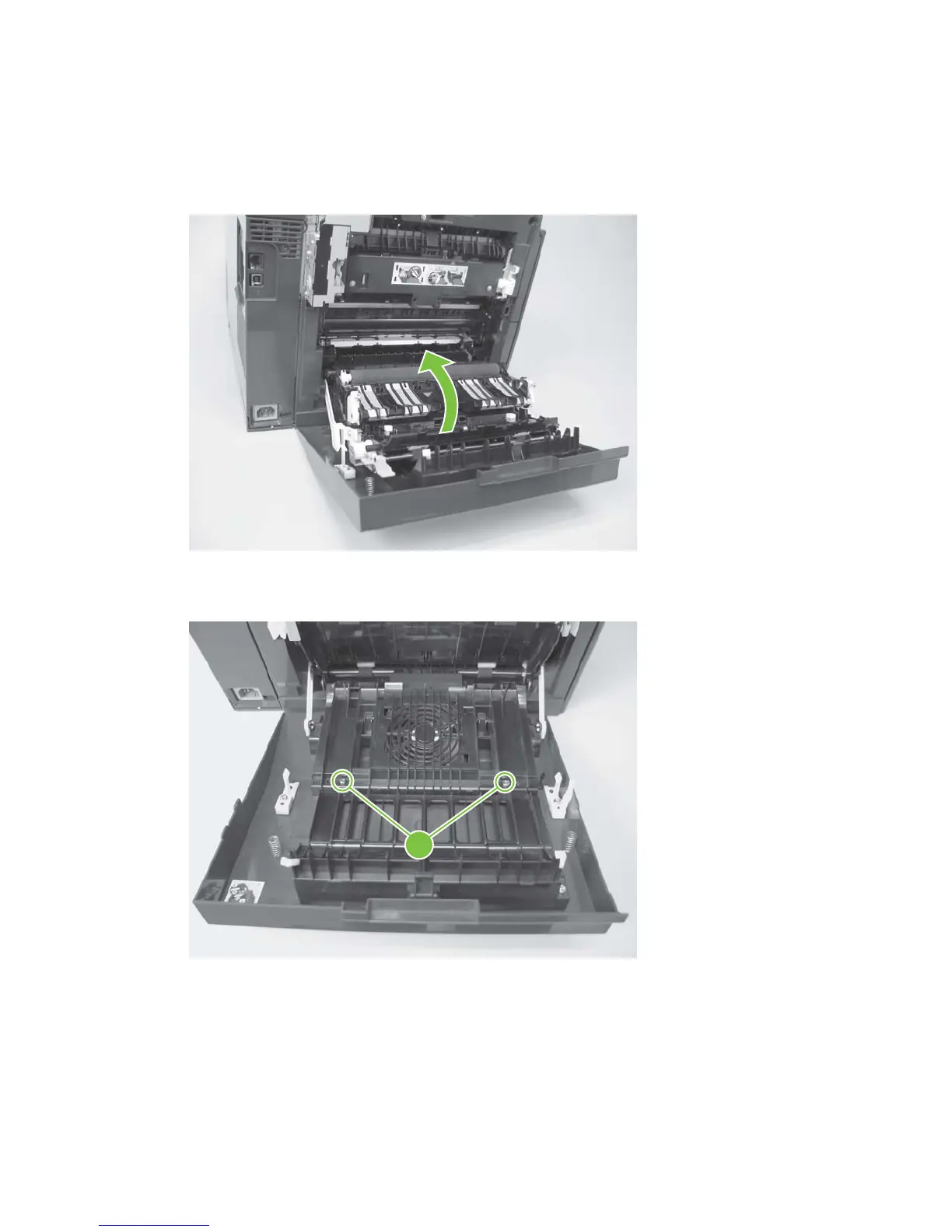

Figure 6-36 Remove the rear door (duplex product) (1 of 4)
3. Remove two screws (callout 1).
Figure 6-37 Remove the rear door (duplex product) (2 of 4)
1
106 Chapter 6 Removal and replacement ENWW
