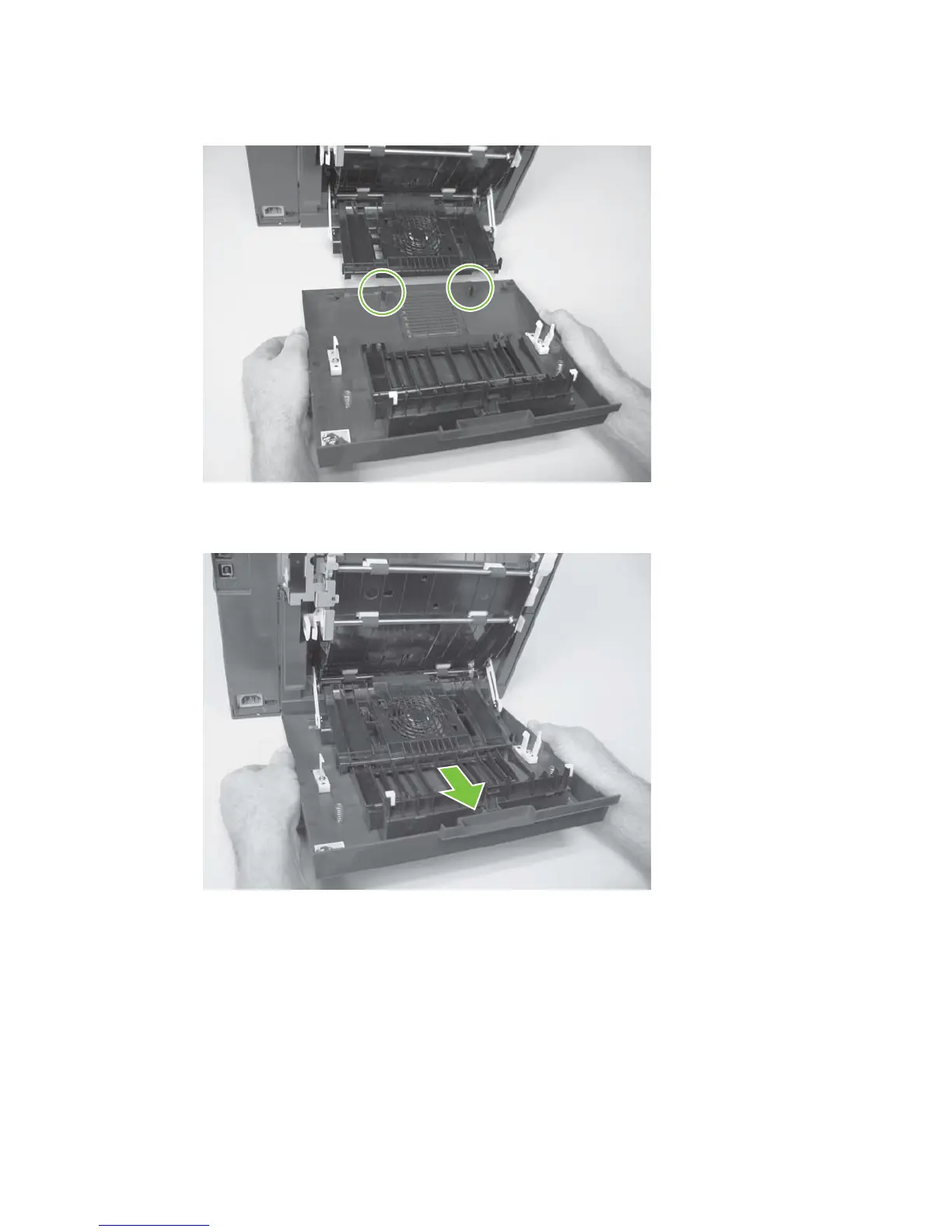

4. Before you remove the rear door, take note of the mounting tabs on the door.
Figure 6-38 Remove the rear door (duplex product) (3 of 4)
5. Slide the door away from the product to release two tabs, and then remove the door.
Figure 6-39 Remove the rear door (duplex product) (4 of 4)
ENWW Components and major assemblies 107
