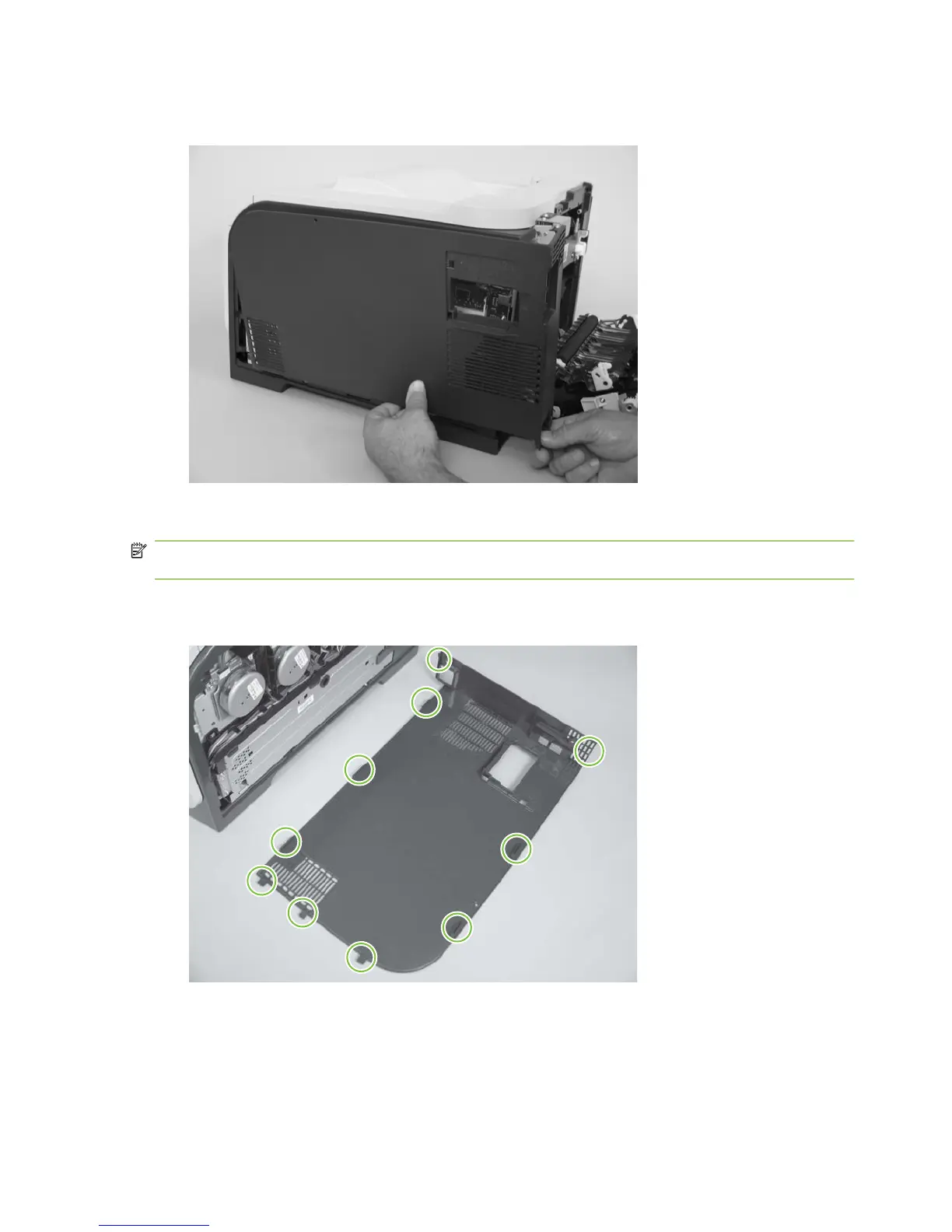

6. Remove the right cover.
Figure 6-44 Remove the right cover (5 of 5)
Reinstall the right cover
NOTE: Do not reinstall the DIMM cover before reinstalling the right cover. The cover will interfere with
the product chassis and prevent the correct installation of the right cover.
●
Before you reinstall the right cover, take note of the mounting tab locations on the back of the cover.
Figure 6-45 Reinstall the right cover
110 Chapter 6 Removal and replacement ENWW
