Rear-upper cover (duplex product)
1. Open the rear cover.
2. Remove two screws (callout 1).

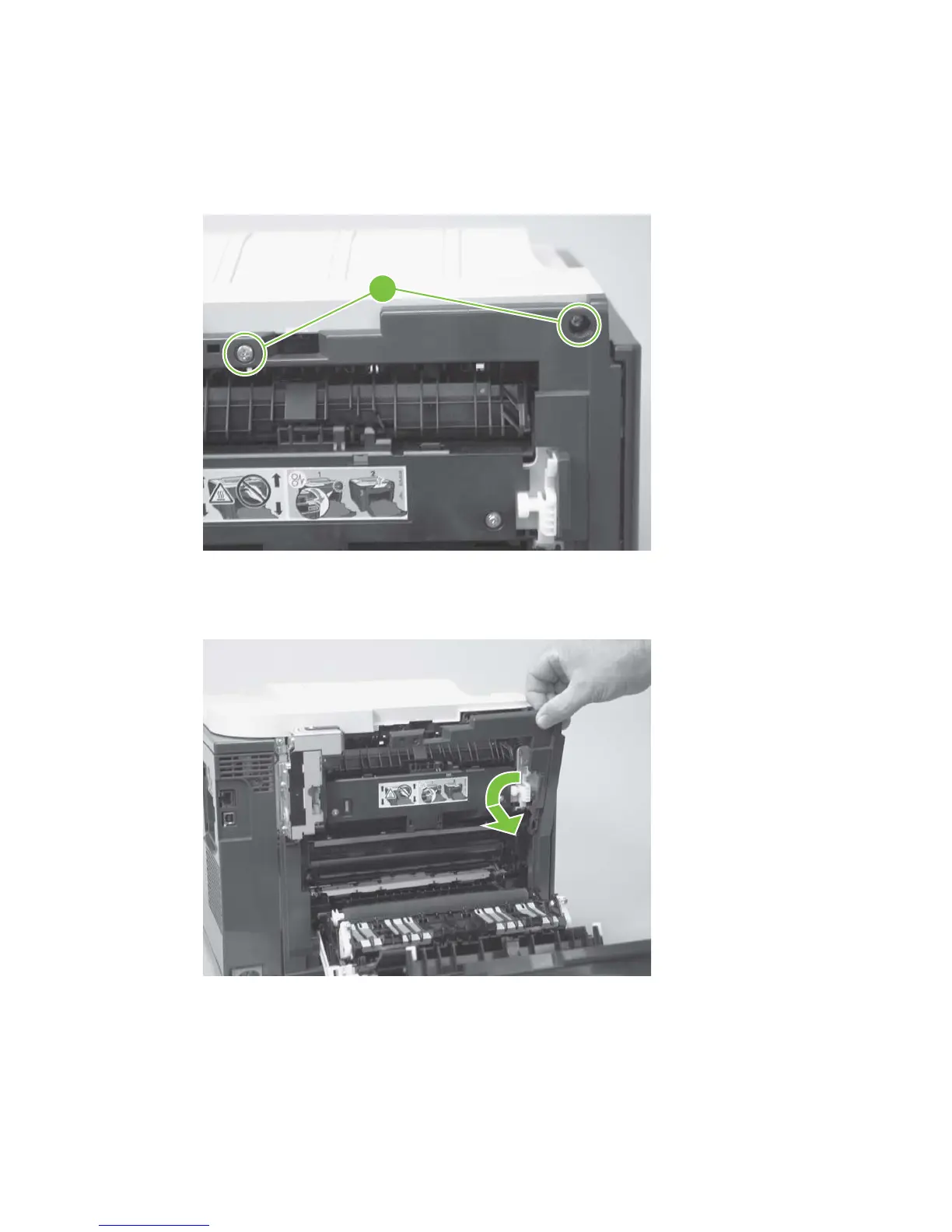

Figure 6-46 Remove the rear-upper cover (1 of 2)
1
3. Slightly separate the cover from the product, and rotate the cover down and then away from the
product to remove it.
Figure 6-47 Remove the rear-upper cover (2 of 2)
ENWW Components and major assemblies 111
