Rear cover and feed guide (simplex product)
1. Remove the following components:
●
Rear-door stopper. See
Rear-door stopper and link caps (simplex product) on page 103.
●
Rear door (simplex products). See
Rear door (simplex product) on page 104.
●
Right cover. See
Right cover on page 108.
2. Carefully release the link guide from the pivot pin on the feed guide.

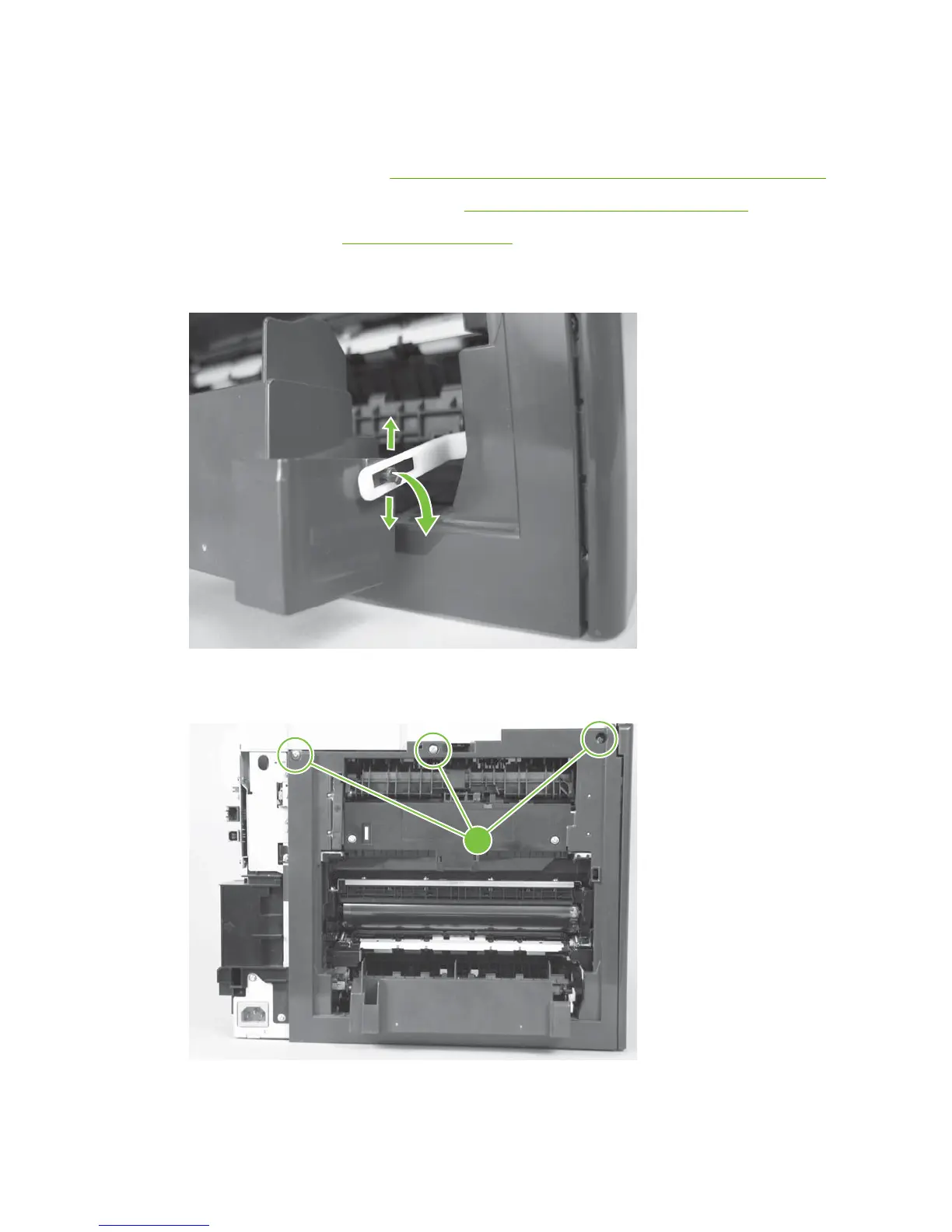

Figure 6-48 Remove the rear cover and feed guide (simplex product) (1 of 6)
3. Remove three screws (callout 1).
Figure 6-49 Remove the rear cover and feed guide (simplex product) (2 of 6)
1
112 Chapter 6 Removal and replacement ENWW
