5. Disconnect two connectors (callout 7), and then release the wire harnesses from the retainer
(callout 8).

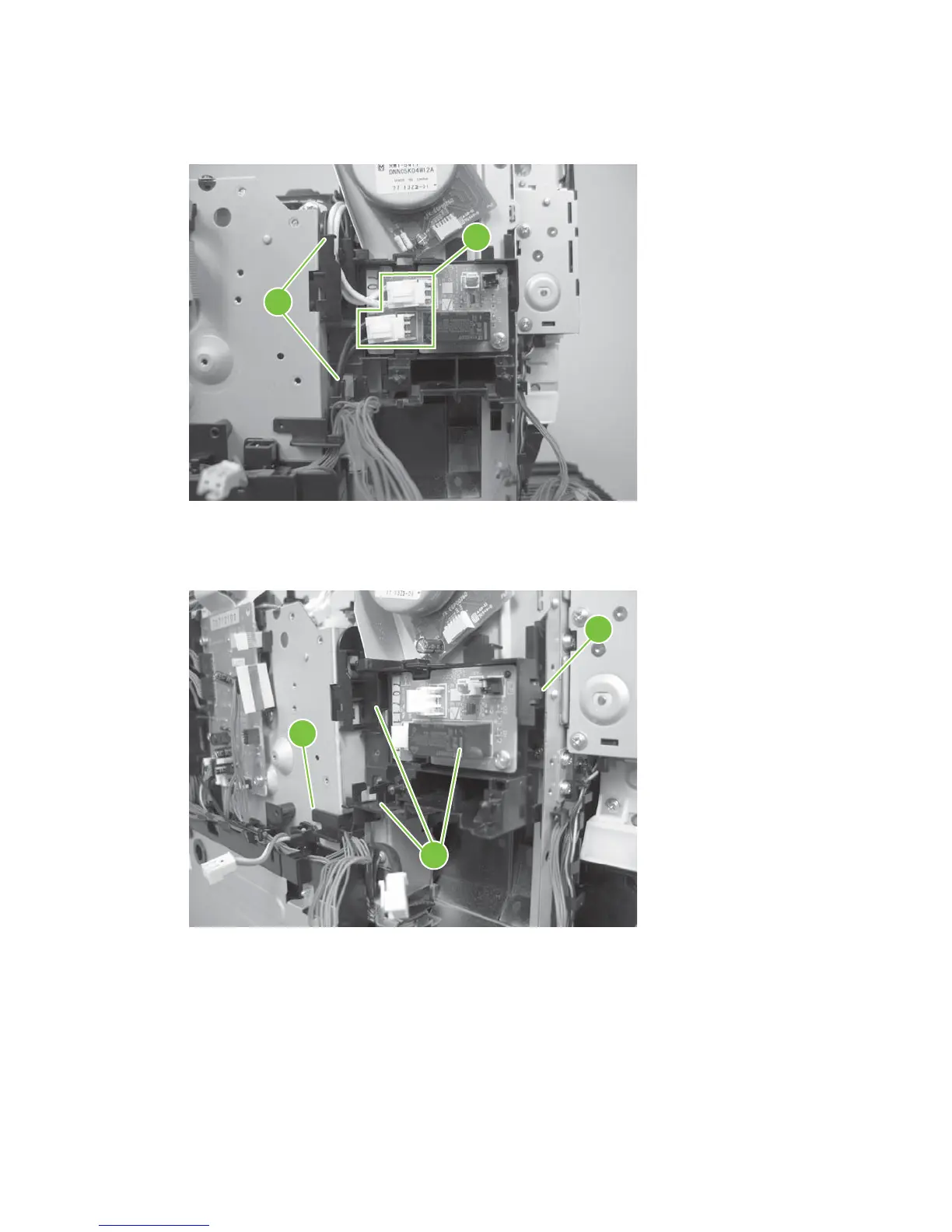

Figure 6-119 Remove the fuser motor assembly (4 of 8)
8
7
6. Release one tab (callout 9), and one pin (callout 10) to release the retainer and PCA assembly
(callout 11).
Figure 6-120 Remove the fuser motor assembly (5 of 8)
11
9
10
156 Chapter 6 Removal and replacement ENWW
