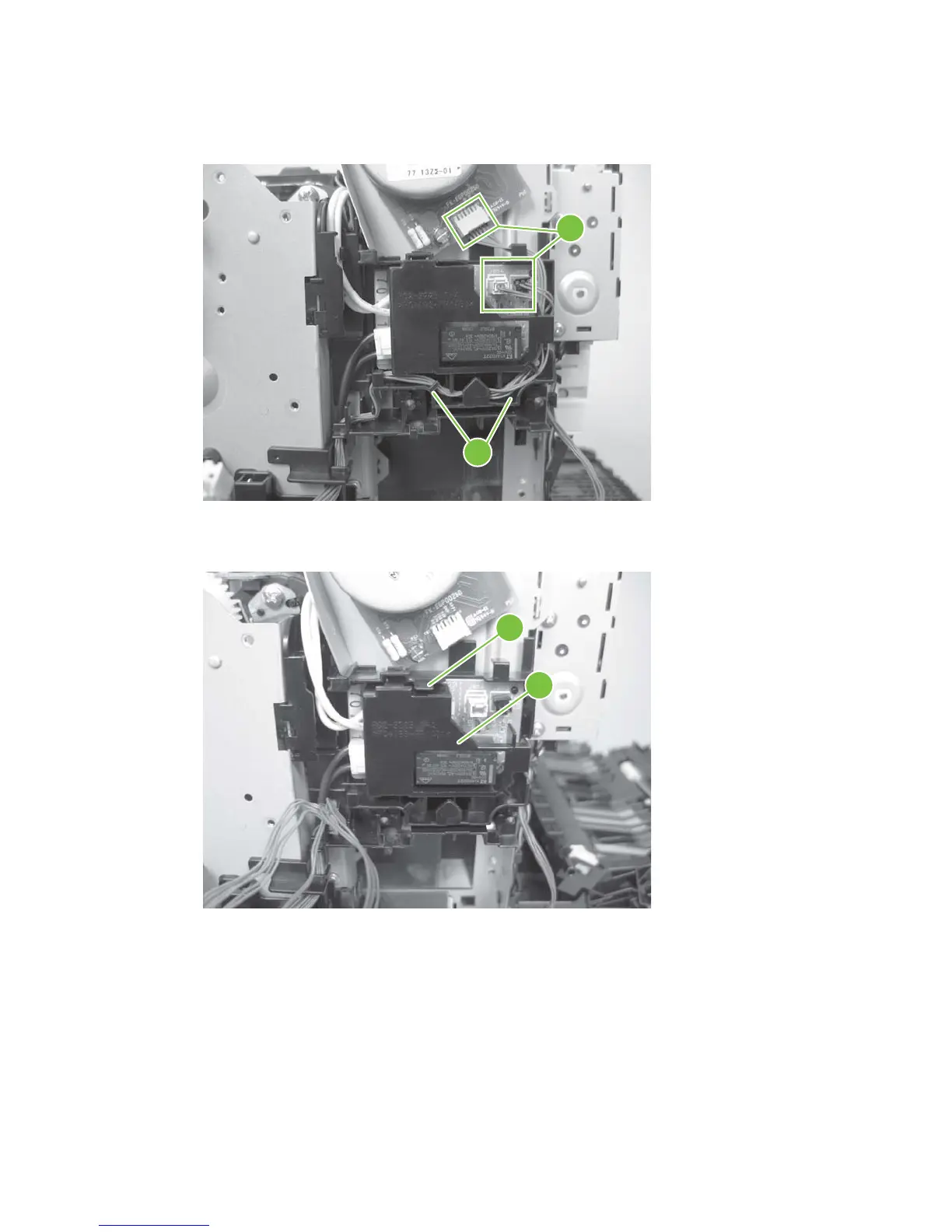

3. Disconnect three connectors (callout 3), and then release the wire harnesses from the retainer
(callout 4).
Figure 6-117 Remove the fuser motor assembly (2 of 8)
3
4
4. Release one tab (callout 5), and then remove the retainer (callout 6).
Figure 6-118 Remove the fuser motor assembly (3 of 8)
5
6
ENWW Components and major assemblies 155
