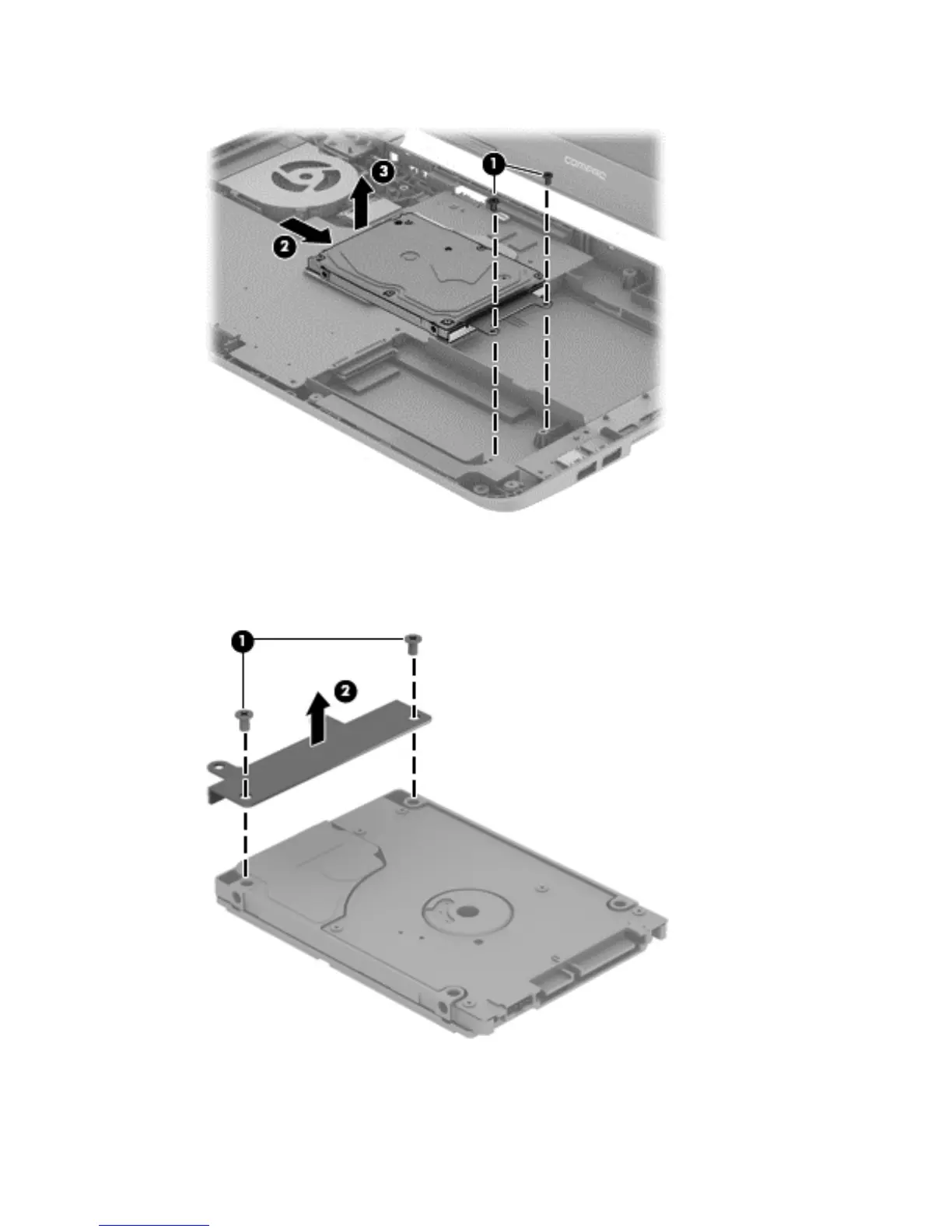

3. Lift the hard drive from the computer (3).
4. To remove the hard drive bracket, remove the two Phillips PM3.0×4.0 screws (1) that secure the bracket
to the hard drive.
5. Remove the hard drive bracket from the hard drive (2).
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 49
