Removal and replacement procedures 4–28

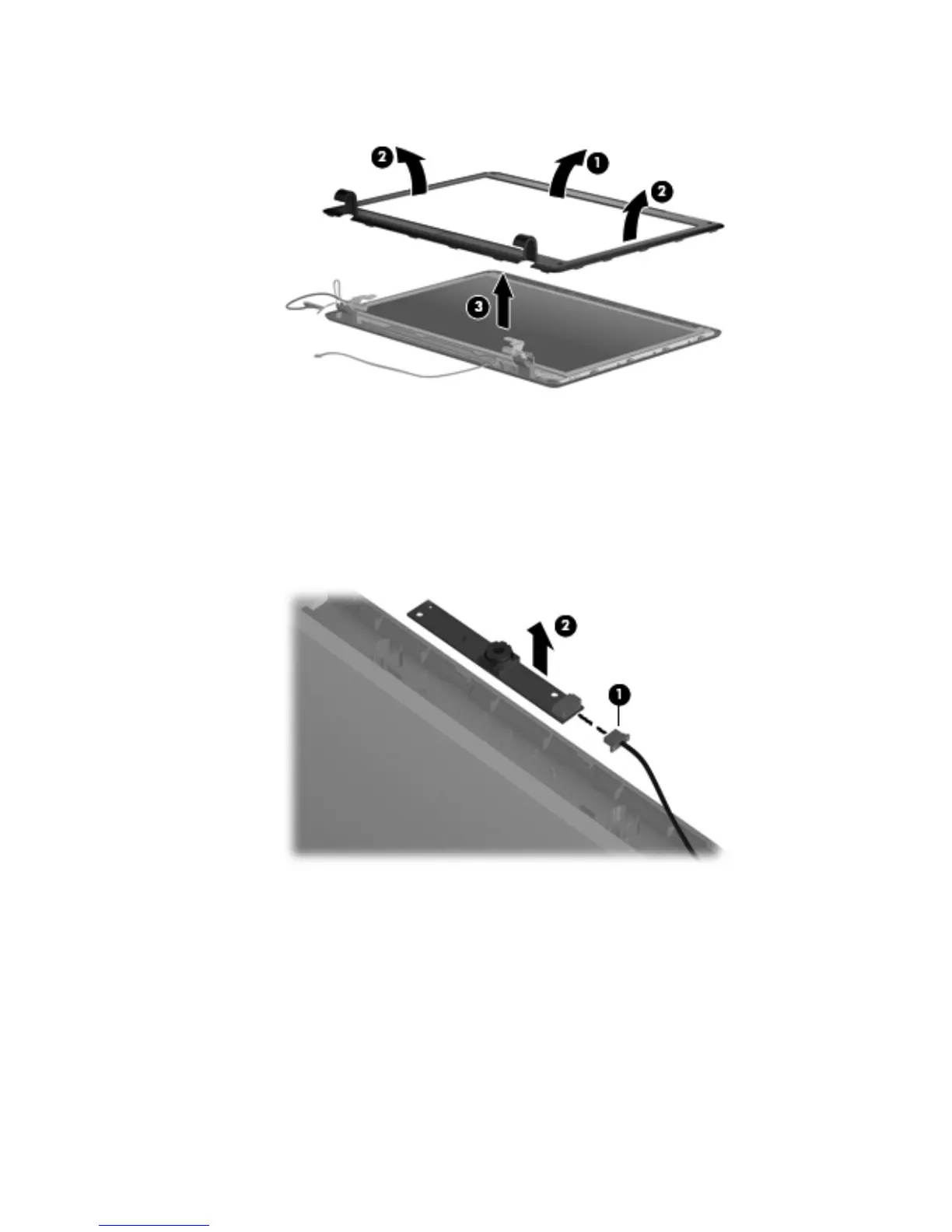

c. Lift the inside edge of the top side of the bezel 1 to disengage it from the clips, and then lift the left and
right sides 2 until the bezel disengages from the display enclosure.
d. Remove the display bezel 3. The display bezel is available using spare part number 495015-001.
Reverse this procedure to install the display bezel. Be careful to route the cables through the side openings in
the hinge covers and avoid pinching the cables between the bezel and display enclosure.
2. If it is necessary to remove the webcam module:
a. Disconnect the webcam cable 1 from the computer.
b. Remove the webcam module 2 from the display enclosure. (The webcam is secured with
double-sided tape.) The webcam can also be ordered separately and is available using spare part number
492159-001.

HP Compaq 2230s Specifications

General

Processor model	-
Processor family	Intel® Celeron® M
Processor manufacturer	Intel
HDD speed	5400 RPM
HDD interface	SATA
Card reader integrated	No
Total storage capacity	120 GB
Display surface	Gloss
Display diagonal	12.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Type	PC
Modem speed	56 Kbit/s
Internal modem	Yes
Wireless technology	802.11a/b/g/n draft 2.0
Bluetooth version	2.0+EDR
Networking features	Marvell Ethernet (10/100/1000 NIC)
Operating system installed	Windows Vista Business
Number of battery cells	4
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
AC adapter power	65 W
Battery performance	37 W
Pointing device	Touchpad + Scroll zone
Country of origin	China

Weight and Dimensions

Depth	294 mm
Height	226 mm
Weight	1850 g
Height (front)	28 mm
