Removal and replacement procedures 4–29

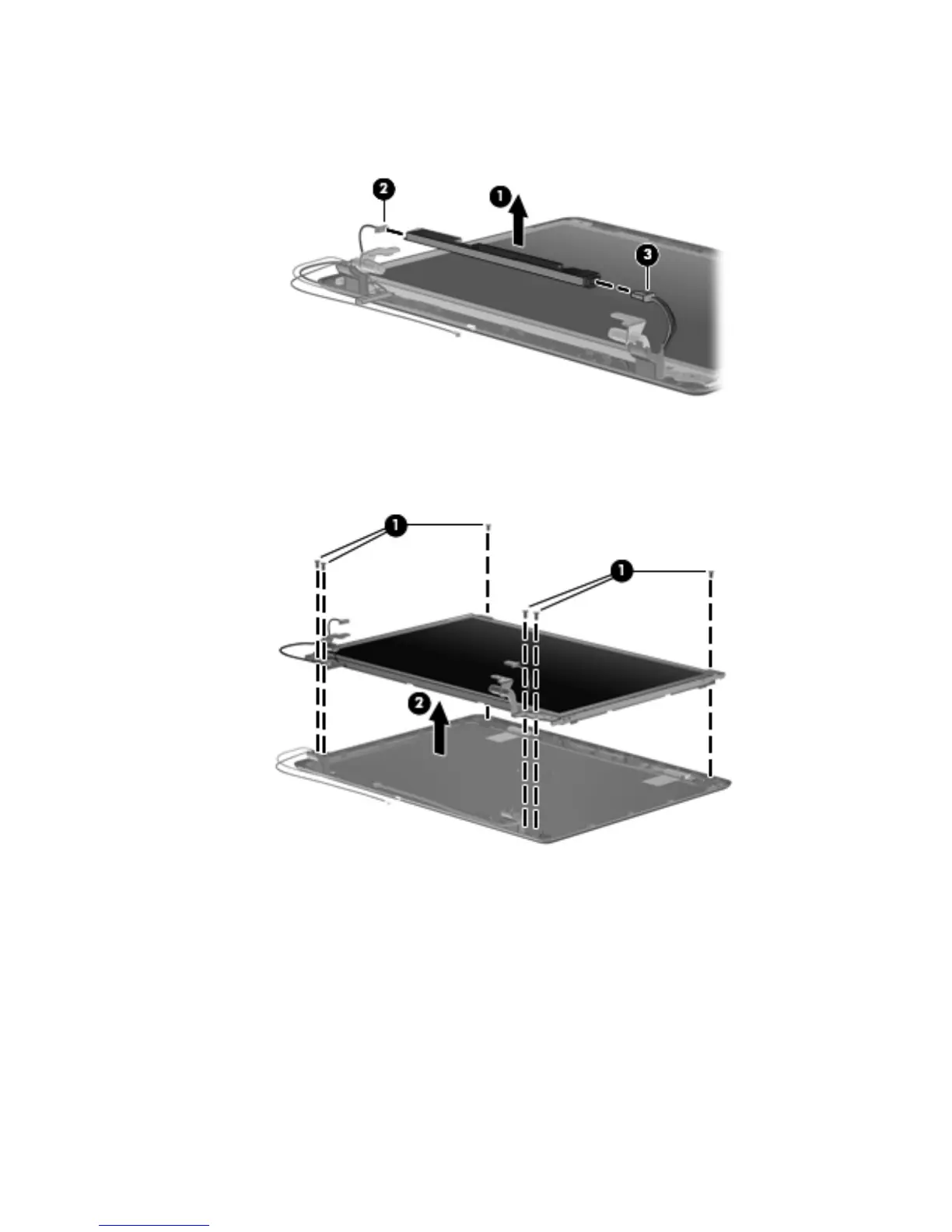

3. If it is necessary to remove the display inverter:
a. Use a flat bladed screwdriver to release the inverter 1, which is secured with double-sided tape.
b. Disconnect the backlight cable 2 and the display panel cable 3 from the display inverter. The display
inverter is available using spare part number 493193-001.
4. If it is necessary to remove the display panel:
a. Remove the six Phillips PM2.0×5.0 screws 1 that secure the display panel to the display enclosure.
b. Remove the display panel 2 from the display enclosure.
