Removal and replacement procedures 4–30

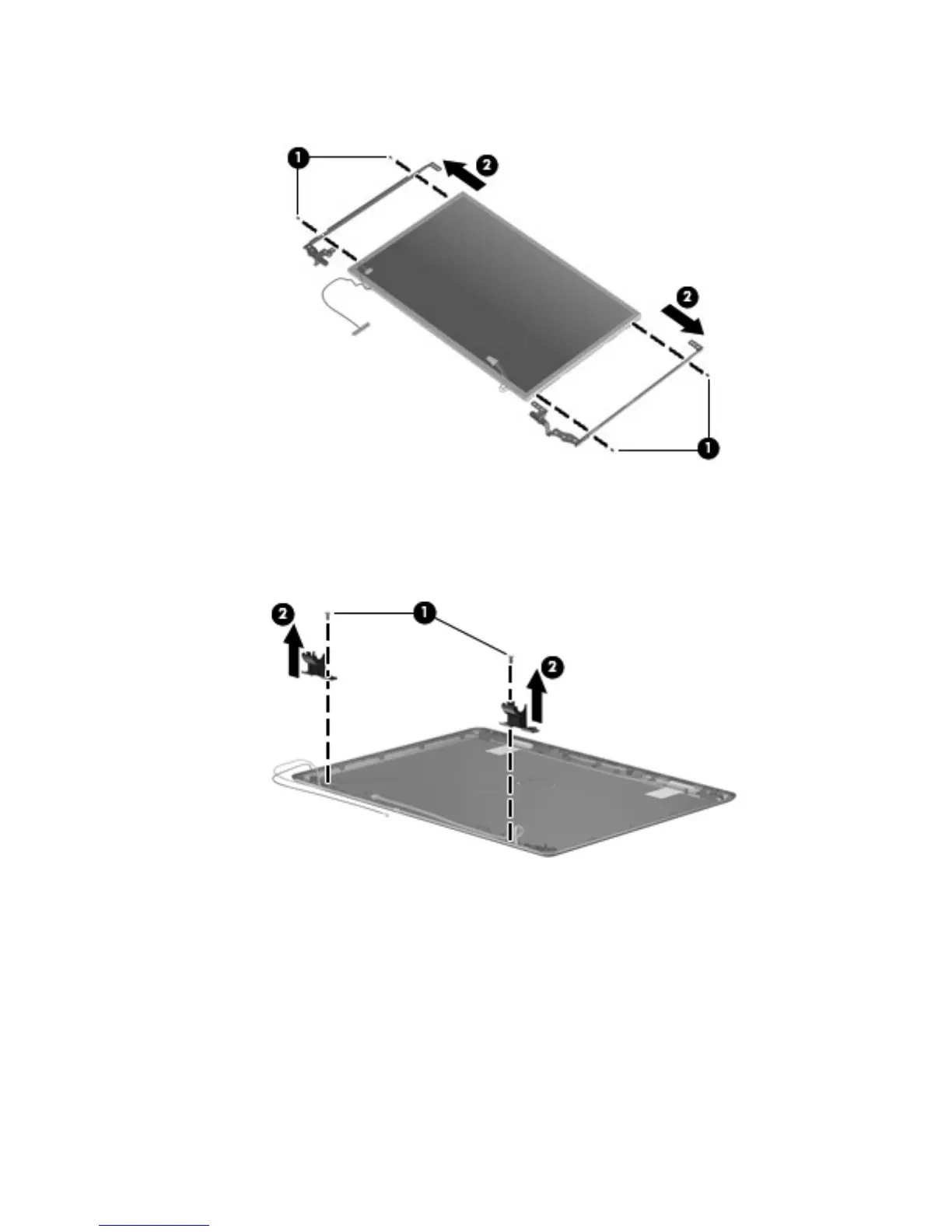

c. Remove the four Phillips PM1.5×3.0 screws 1 that secure the hinges to the display panel.
d. Remove the display hinges 2 from the display panel. The display hinges are available using spare part
number 493192-001.
5. If it is necessary to remove the microphone cable or WLAN transceivers and cable:
✎
The microphone, WLAN antenna cable, and the LCD module cable are included in the Cable Kit, spare part
number 493275-001.
a. Remove the two Phillips PM2.0×6.0 screws 1 and display hinge covers 2.
