Removal and replacement procedures 4–31

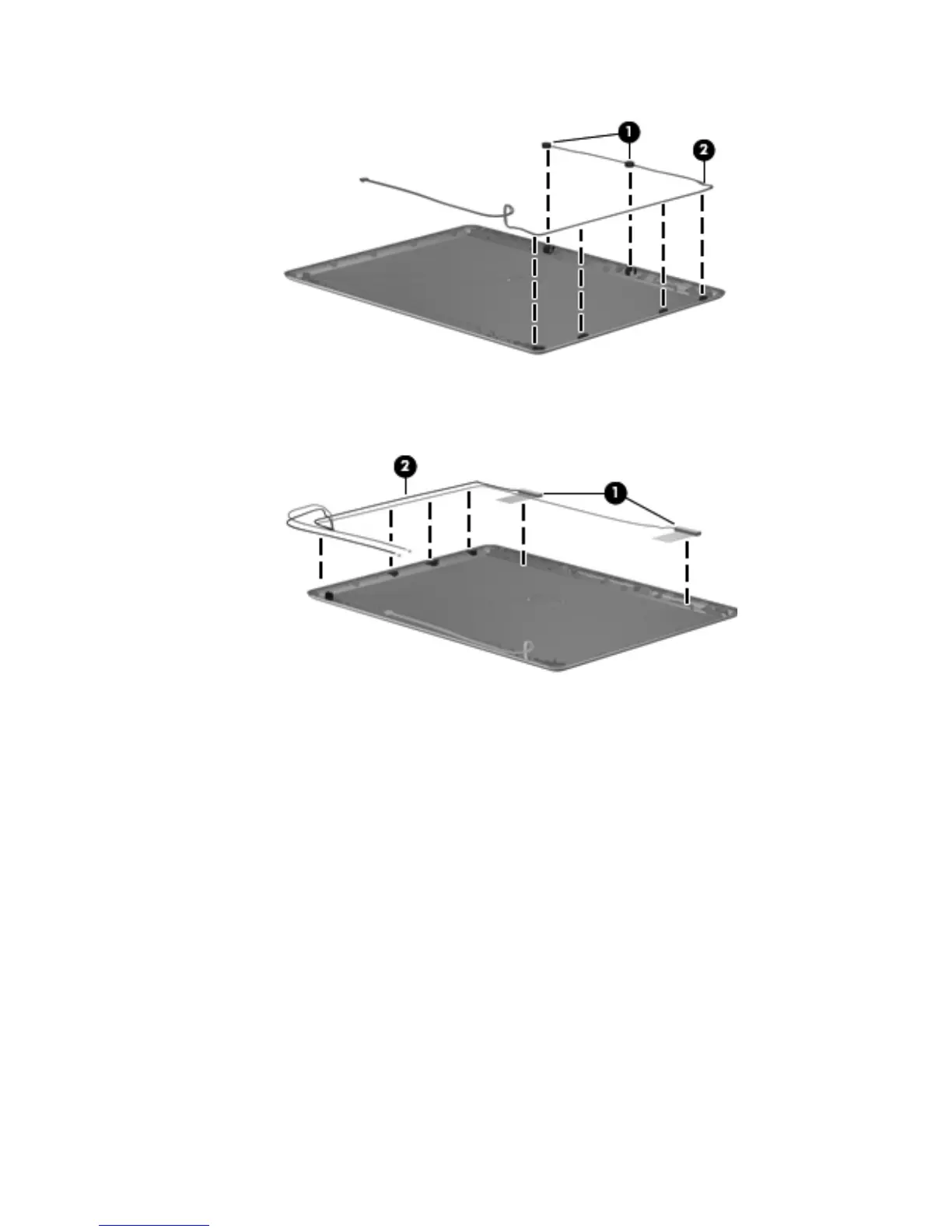

b. Remove the two microphone receivers 1 from the display enclosure, and then release the microphone cable
2 from the clips in the display enclosure.
Reverse this procedure to install the microphone.
c. Remove the adhesive tape from the WLAN transceivers 1, and then release the WLAN cables 2 from the
clips in the display enclosure.
Reverse this procedure to install the WLAN transceivers and cable.
