3.

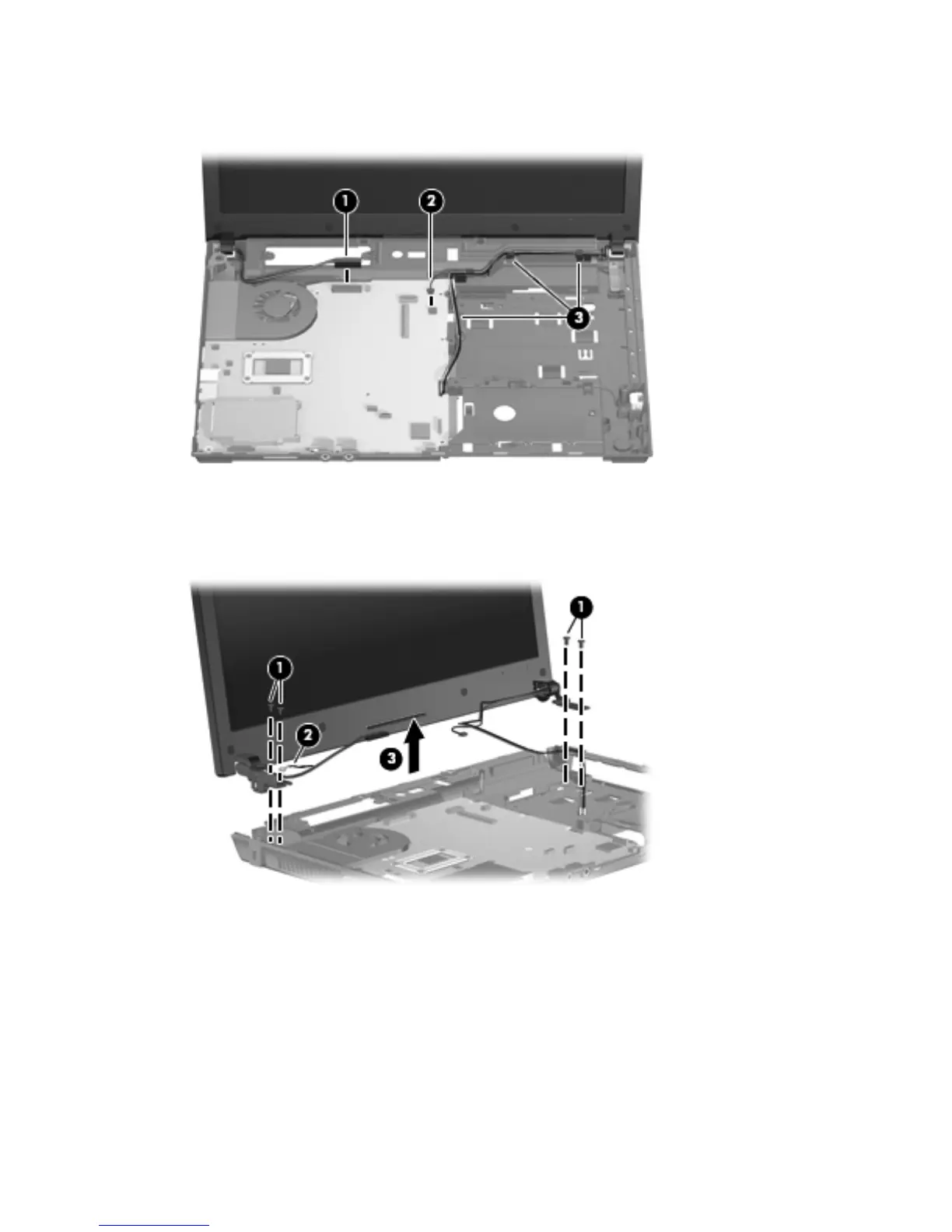

Release the WLAN cables from the cable run (3), being careful when pulling them through the
opening near the hard drive.
4.
Remove four Torx M2.5×6.0 screws (1) that secure the display to the base enclosure. Be careful
of the grounding cable (2) that is secured by one of the hinge retaining screws.
5. Lift the display assembly (3) from the base enclosure.
96 Chapter 4 Removal and replacement procedures
