Remove the display assembly:

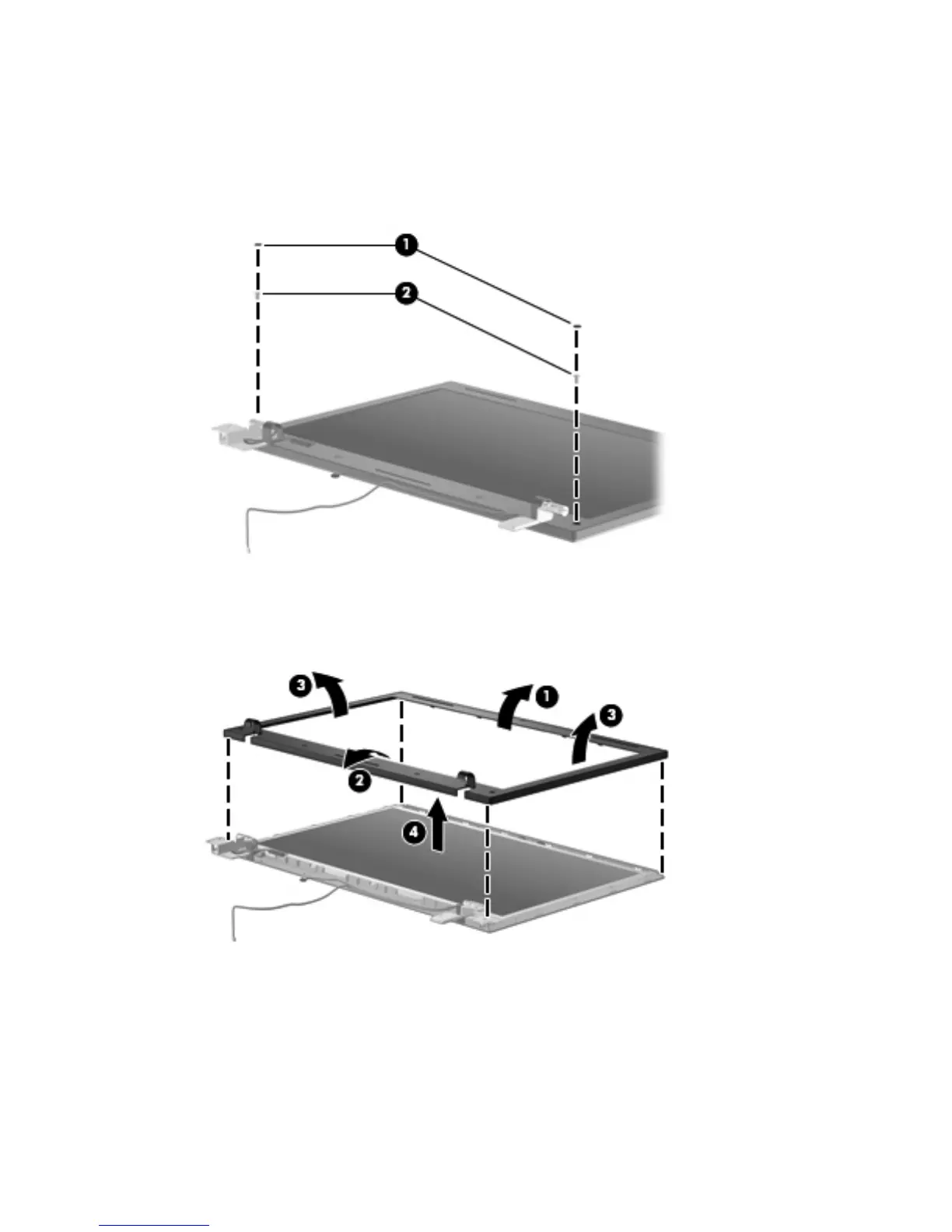

1. If it is necessary to replace the display bezel, display enclosure, or display hinges, remove the two
mylar screw covers (1) and the 2 Phillips PM2.5×4.0 screws (2) that secure the display bezel to
the display assembly. The screw covers are available in the Rubber Kit, spare part number
598678-001.
2. Starting at the top of the display, flex the bezel (1) and work around the periphery of the bezel
(2) and (3) to release the bezel from the display enclosure .
3. Lift the bezel (4) from the display enclosure.
