HP Compaq 6005 Pro

EL-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

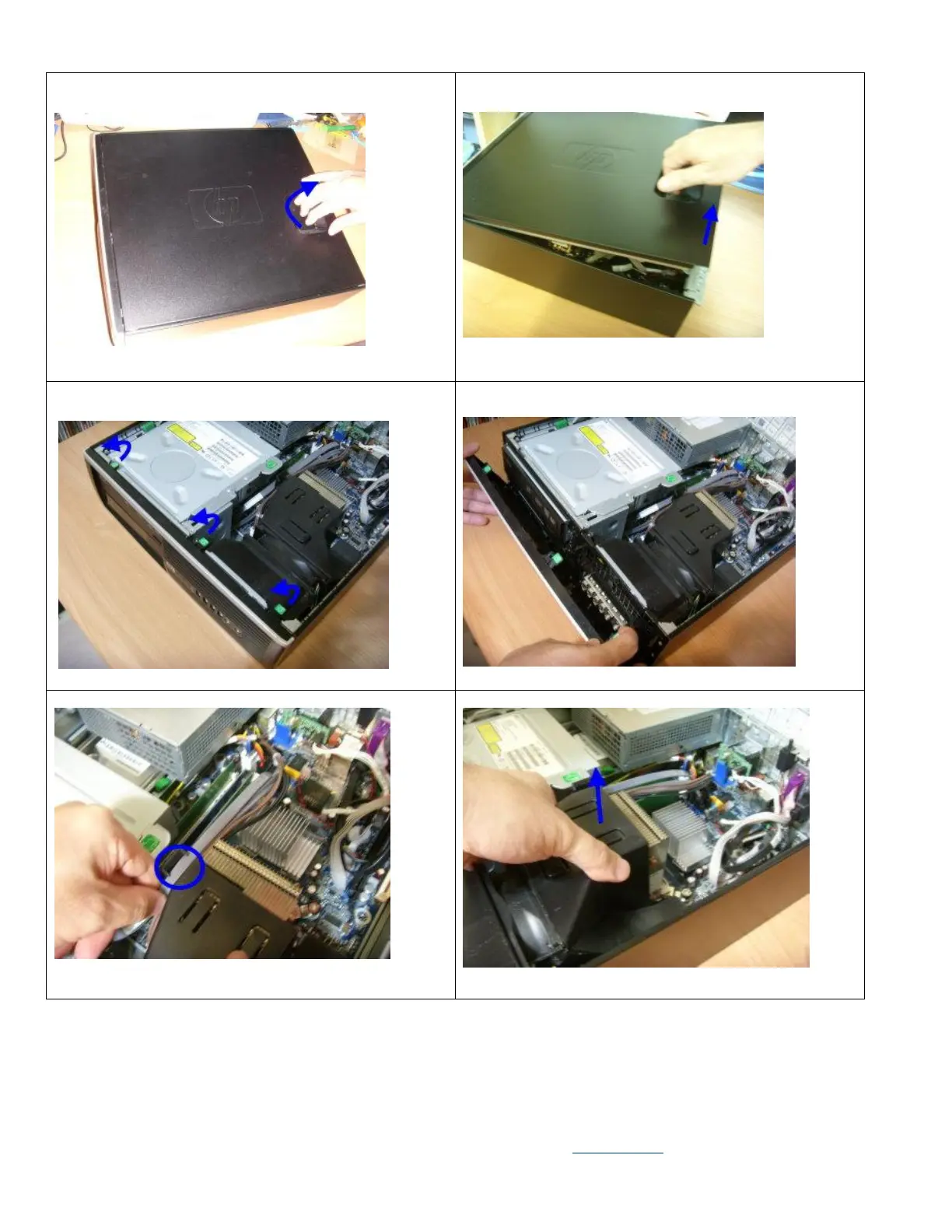

Figure 1:Pull Lock
Figure 2:Rise access panck Press front panel clip
Figure 3: Pull 3 retaining clips on the bezel top side
Figure 4: Release the front bezel. Rotate the bezel outward
to remove it from the chassis
Figure 5: Remove all cable from cable clamp
Figure 6: Release Fan duct
