Remove the switch cover and keyboard:

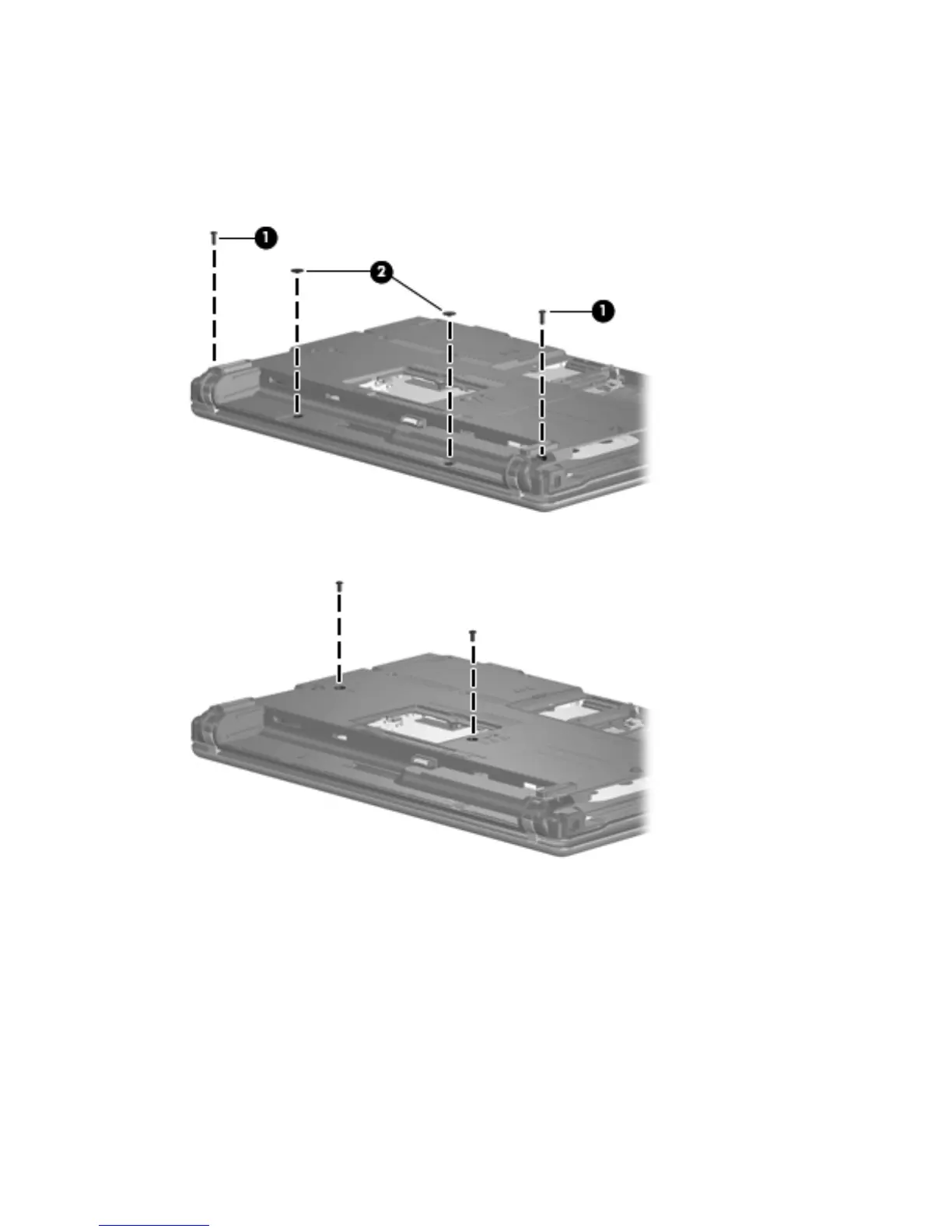

1. Remove the following screws:
(1) Two Torx T8M2.5×7.0 screws
(2) Three Torx T8M2.5×3.0 broad-head screws
2. Remove the two Torx T8M2.5×7.0 screws that secure the keyboard to the computer.
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
48 Chapter 4 Removal and replacement procedures
