e. Speaker (see Speaker on page 51)
f. Display lid switch module (see
Display lid switch module on page 52)
g. Display assembly (see
Display assembly on page 53)
h. Top cover (see
Top cover on page 58)
i. System board (see
System board on page 66)

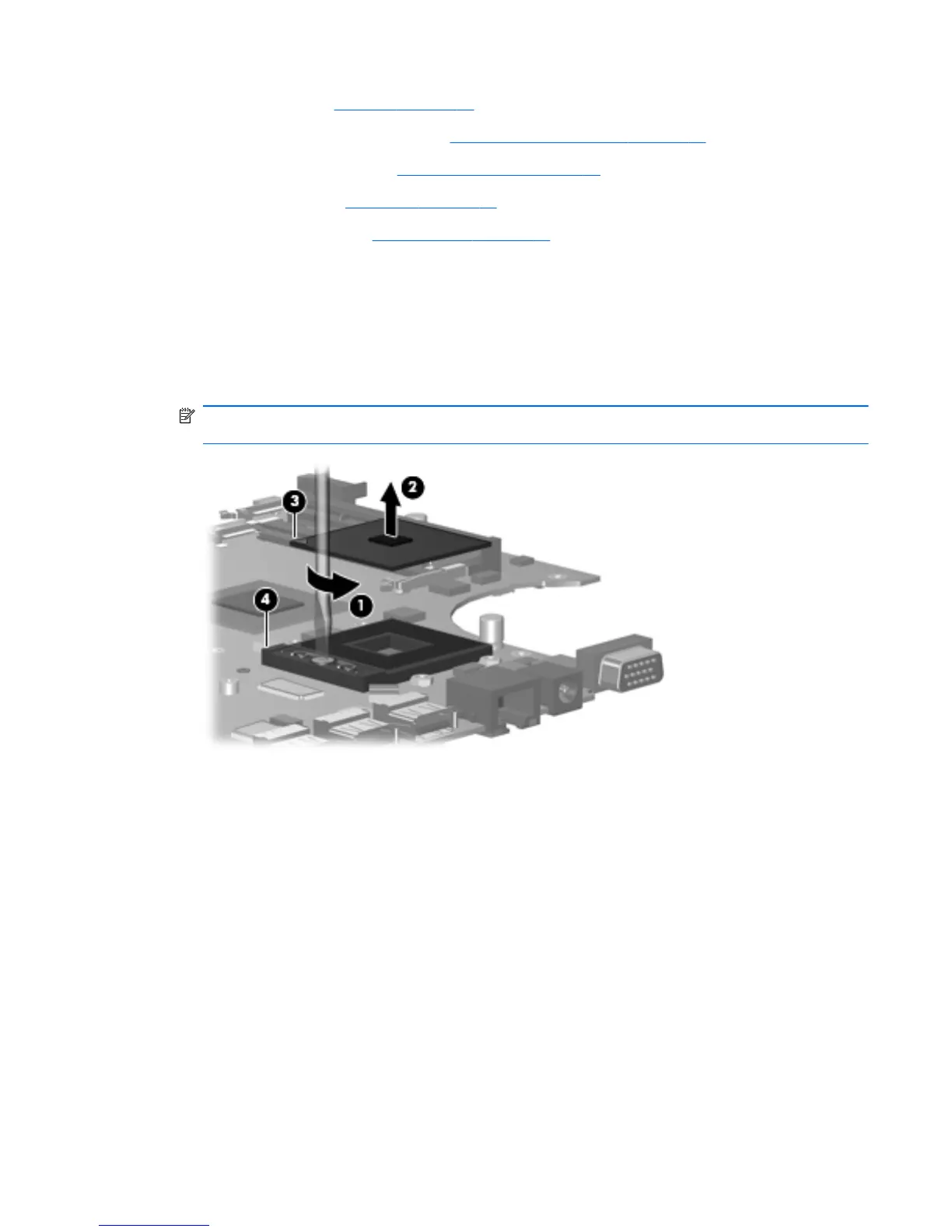

Remove the processor:
1. Turn the system board upside down, with the USB connectors toward you.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn
counterclockwise until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned
with the triangle (4) embossed on the processor slot.
Reverse this procedure to install the processor.
Component replacement procedures 75
