Where used:
8 screws that secu
re the disp
lay hinges to the display panel

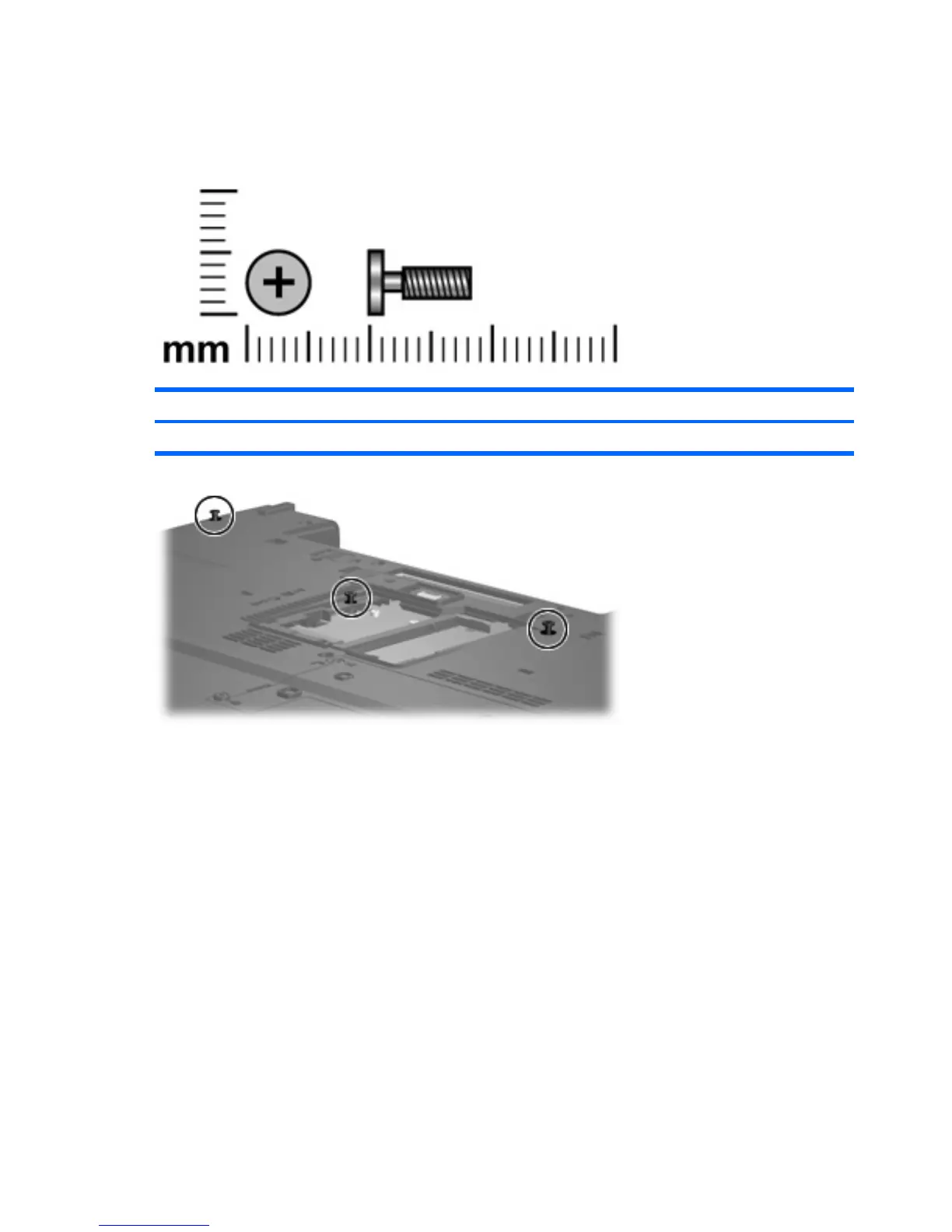

Black Phillips PM2.5×8.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
3
8.0 mm
2
.5 mm
5.0 mm
Where used:
3 screws that secure the keyboard to
the computer
126
Chapter
7
Screw listing
ENWW
133
135
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
19
Top Components
19
Buttons, Switches, and Fingerprint Reader
19
Keys
21
Lights
22
Touchpad
23
Front Components
24
Left-Side Components
25
Rear Components
26
Right-Side Components
27
Bottom Components
28
3 Illustrated Parts Catalog
29
Serial Number Location
29
Computer Major Components
30
Plastics Kit
38
Cable Kit
39
Mass Storage Devices
40
Miscellaneous Parts
41
Sequential Part Number Listing
42
4 Removal and Replacement Procedures
49
Preliminary Replacement Requirements
49
Tools Required
49
Service Considerations
49
Plastic Parts
49
Cables and Connectors
50
Drive Handling
50
Grounding Guidelines
51
Electrostatic Discharge Damage
51
Packaging and Transporting Guidelines
52
Workstation Guidelines
52
Equipment Guidelines
53
Unknown User Password
54
Component Replacement Procedures
55
Serial Number
55
Battery
56
Sim
57
Display Inverter
58
Hard Drive
60
Computer Feet
62
Bluetooth Module
62
Expansion Memory Module
64
WLAN Module
66
Optical Drive
70
Keyboard
72
Internal Memory Module
74
RTC Battery
75
WWAN Module
76
Switch Cover
78
Fan
79
Heat Sink
80
Processor
82
Display Assembly
84
Top Cover
89
Speaker Assembly
93
Usb/Media Card Reader Board
94
System Board
96
PC Card/Audio Board Assembly
99
Modem Module
100
SIM Slot Board
102
5 Computer Setup
105
Starting Computer Setup
105
Using Computer Setup
106
Navigating and Selecting in Computer Setup
106
Restoring Factory Settings in Computer Setup
106
Computer Setup Menus
107
File Menu
107
Security Menu
108
Diagnostics Menu
108
System Configuration Menu
109
6 Specifications
111
Computer Specifications
111
15.4-Inch, WSXGA Display Specifications
112
15.4-Inch, WXGA Display Specifications
113
Hard Drive Specifications
114
Primary 6-Cell, Li-Ion Battery Specifications
115
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive Specifications
116
DVD/CD-RW Combo Drive Specifications
117
DVD-ROM Drive
118
System DMA Specifications
119
System Interrupt Specifications
120
System I/O Address Specifications
121
System Memory Map Specifications
123
7 Screw Listing
125
Torx T8M2.5×7.0 Screw
125
Phillips PM2.0×5.0 Captive Screw
126
Phillips PM2.5×13.0 Captive Screw
127
Phillips PM3.0×3.0 Screw
128
Phillips PM2.5×3.0 Screw
129
Torx T8M2.5×9.0 Screw
131
Phillips PM2.0×3.0 Screw
133
Black Phillips PM2.5×8.0 Captive Screw
134
Silver Phillips PM2.5×8.0 Captive Screw
135
Phillips PM2.5×8.0 Screw
136
Phillips PM2.0×6.0 Screw
137
Torx T8M2.5×6.0 Screw
138
Hex HM5.0×9.0 Screw Lock
139
Phillips PM2.5×5.0 Screw
140
Phillips PM2.5×3.0 Broad-Head Screw
142
8 Backup and Recovery in Windows Vista
143
Creating Recovery Discs
143
Backing up Your Information
144
When to Back up
144
Backup Suggestions
144
Backing up Specific Files or Folders
145
Backing up the Entire Hard Drive
145
Creating Recovery Points
146
Scheduling Backups
146
Performing a Recovery
147
Performing a Recovery from the Recovery Discs
147
Performing a Recovery from the Hard Drive
147
Initiating a Recovery from the Hard Drive Recovery Partition
148
Initiating a Recovery in Windows
148
9 Backup and Recovery in Windows XP
149
Creating Recovery Discs
149
Backing up Your Information
150
When to Back up
150
Backup Suggestions
150
Backing up Specific Files or Folders
151
Backing up the Entire Hard Drive
151
Creating Recovery Points
152
Scheduling Backups
152
Performing a Recovery
153
Performing a Recovery from the Recovery Discs
153
Performing a Recovery from the Hard Drive
153
Initiating a Recovery from the Hard Drive Recovery Partition
154
Initiating a Recovery in Windows
154
10 Connector Pin Assignments
155
Audio-Out (Headphone)
155
Audio-In (Microphone)
155
External Monitor
156
Modem)
157
Network)
157
S-Video-Out
158
Universal Serial Bus
158
11 Power Cord Set Requirements
159
Requirements for All Countries and Regions
159
Requirements for Specific Countries and Regions
160
12 Recycling
161
Battery
161
Display
161
Index
167
