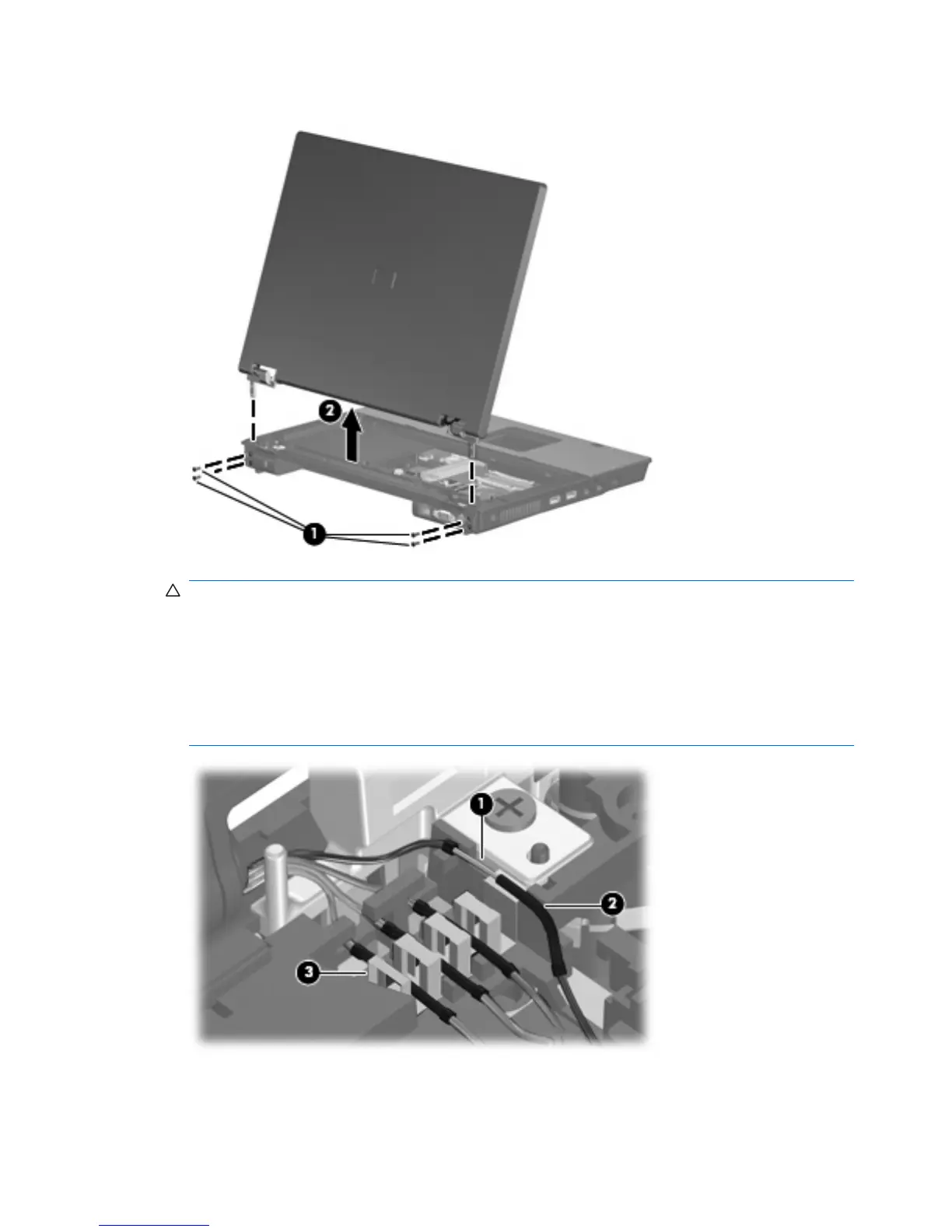

6. Lift the display assembly straight up and remove it (2).
CAUTION: When installing the display assembly, be sure that the 4 wireless antenna cables
routed out of the display right hinge are routed and arranged properly. Each antenna cable has an
exposed section of cable (1) and a metallic grounding sleeve (2). The grounding sleeve must
completely cover the exposed section of cable. Each cable must be secured inside a space in the
copper grounding clip (3). Left to right, the cables must be installed in a red, white, black, blue
sequence.
Failure to follow these routing instructions can result in degradation of the computer's WLAN and
WWAN performance.
78 Chapter 4 Removal and replacement procedures ENWW
