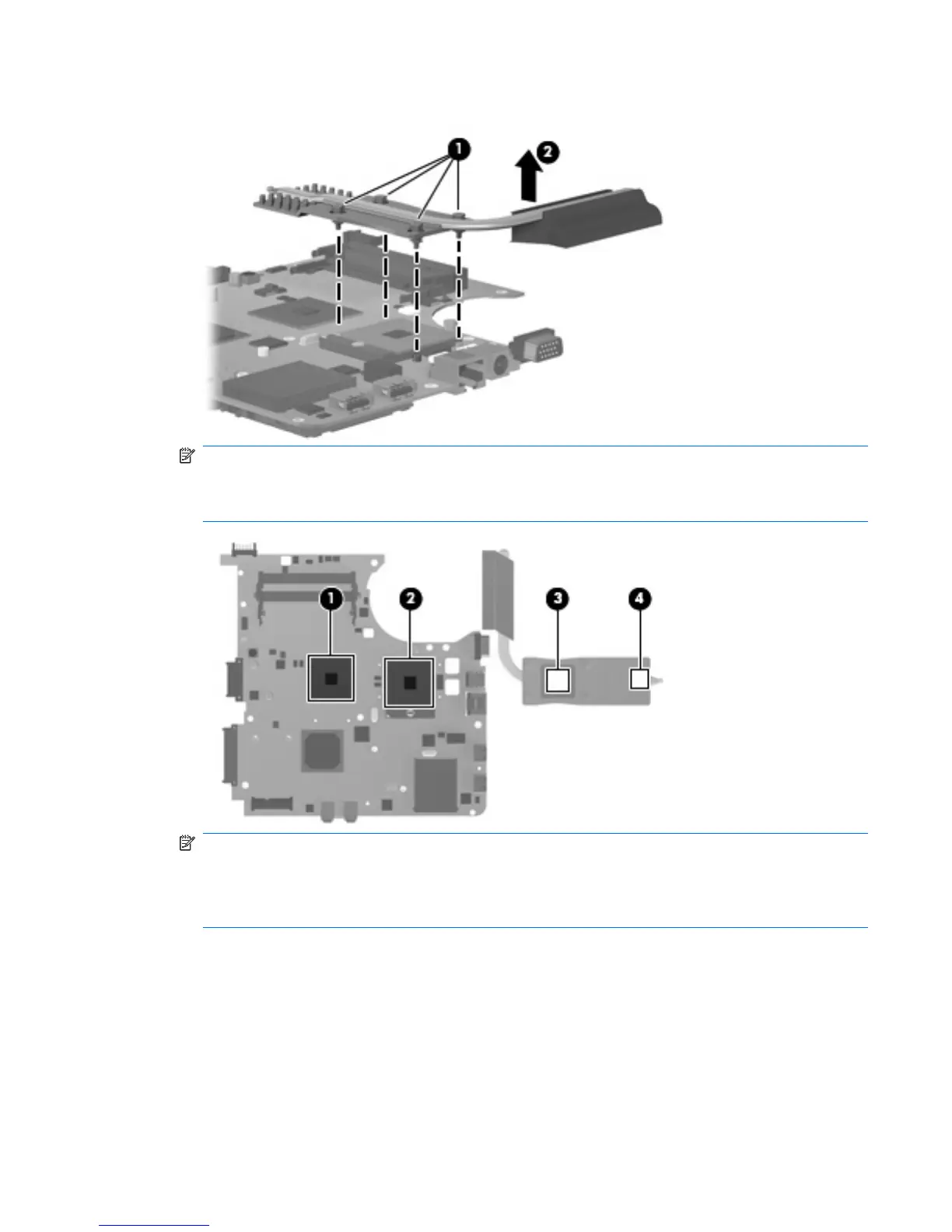

3. Remove the heat sink (2).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the system
board (1) and (2), and the heat sink components (3) and (4) each time the heat sink is removed.
Replacement thermal material is included with all heat sink, system board, and processor spare
part kits.
NOTE: Steps 4 through 6 apply only to HP Compaq 6730s Notebook PC models with Intel
processors with UMA subsystem memory. See steps 1 through 3 for removing the heat sink on HP
Compaq 6730s Notebook PC models with discrete subsystem memory. See steps 7 through 9 for
removing the heat sink on HP Compaq 6735s Notebook PC models with AMD processors with
UMA subsystem memory.
4. Turn the system board upside down, with the audio connectors toward you.
5. Following the 1, 2, 3, 4 sequence stamped into the heat sink, loosen the six screws (1) around the
processor.
Component replacement procedures 89
