HP COMPAQ 8000 User Manual

To replace the front bezel:
1. Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1)
then rotate the top side of the bezel onto the chassis (2) and snap it into place.

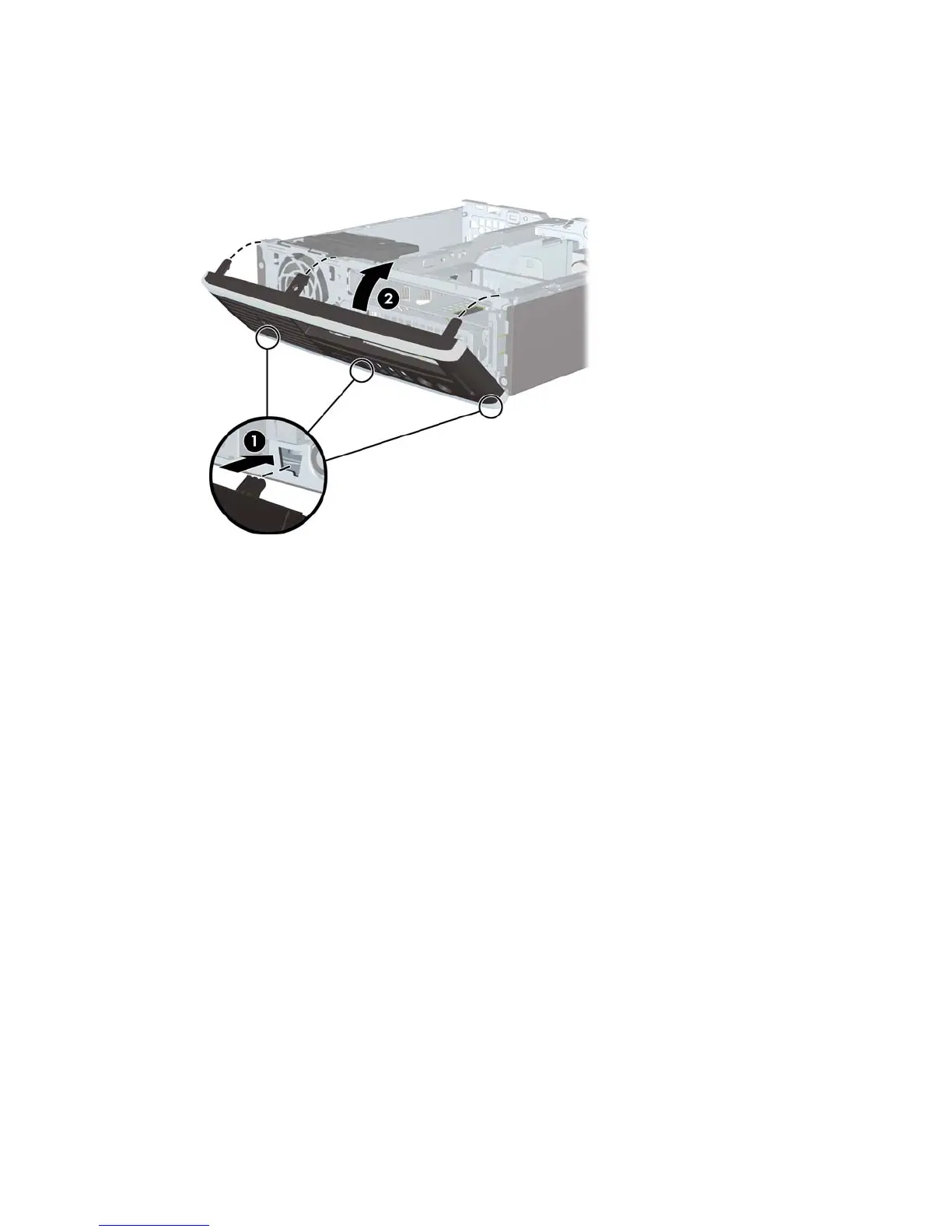

Figure 2-5 Replacing the Front Bezel
2. Replace the access panel.
3. If the computer was on a stand, replace the stand.
4. Reconnect the power cord and turn on the computer.
5. Lock any security devices that were disengaged when the access panel was removed.
12 Chapter 2 Hardware Upgrades ENWW

HP COMPAQ 8000 Specifications

General

Chipset	Intel Q45 Express
Audio	Integrated High Definition audio
Processor	Intel Core 2 Duo
RAM	Up to 16 GB DDR3
Storage	HDD or SSD
Graphics	Integrated Intel Graphics Media Accelerator
Operating System	Windows 7, Windows Vista, Windows XP
Network	Integrated Gigabit Ethernet
Ports	1 VGA, 1 DisplayPort, 1 serial, audio in/out
Optical Drive	DVD-ROM
Form Factor	Small Form Factor
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
