HP COMPAQ 8000 User Manual

3. Screw the lock to the chassis using the screw provided.

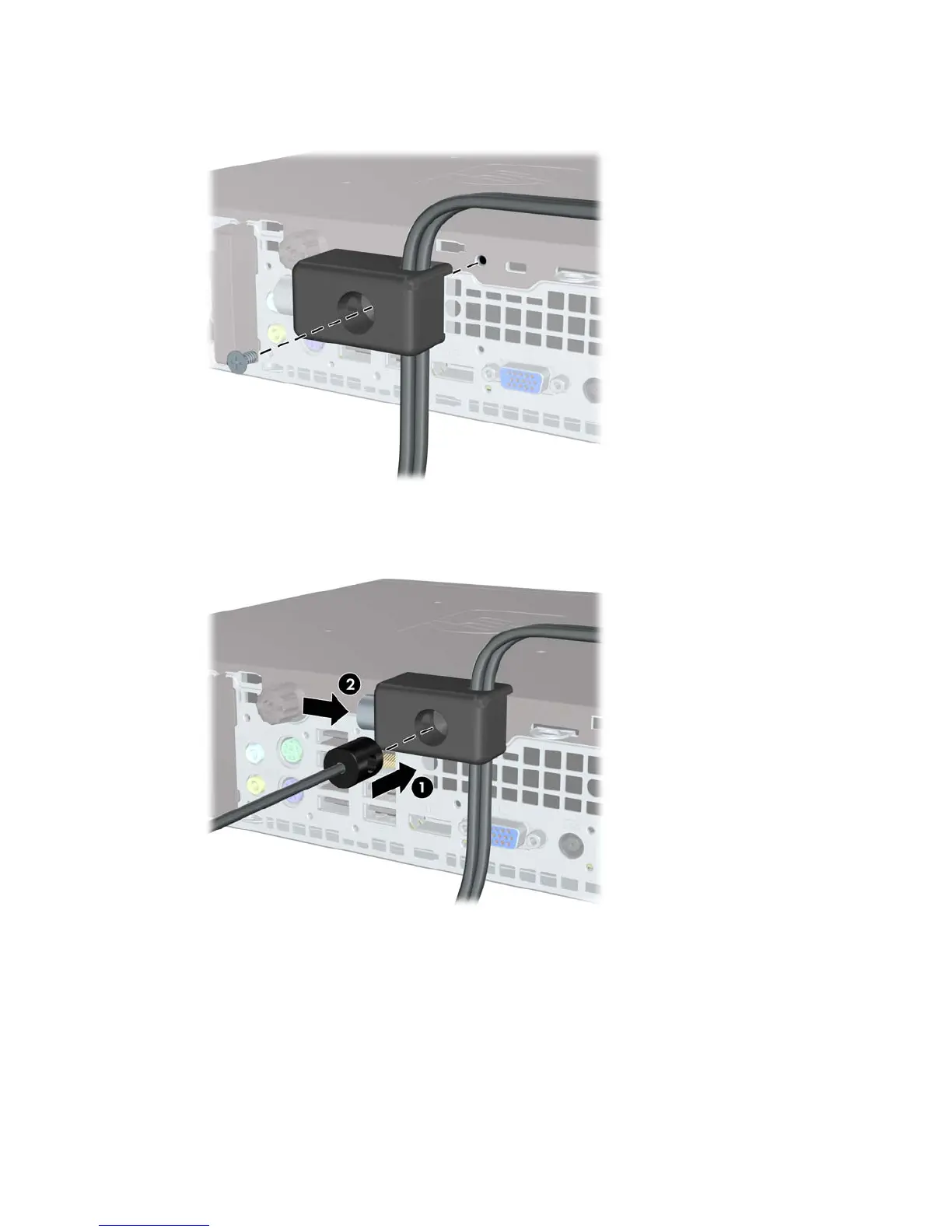

Figure C-6 Attaching the Lock to the Chassis
4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure C-7 Engaging the Lock
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as compact discs or USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
ENWW Installing a Security Lock 35

HP COMPAQ 8000 Specifications

General

Brand	HP
Model	COMPAQ 8000
Category	Desktop
Language	English
