Removing and Replacing the Front Bezel
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as compact discs or USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5. If the computer is on a stand, remove the computer from the stand and lay the computer down.
6. Remove the computer access panel.

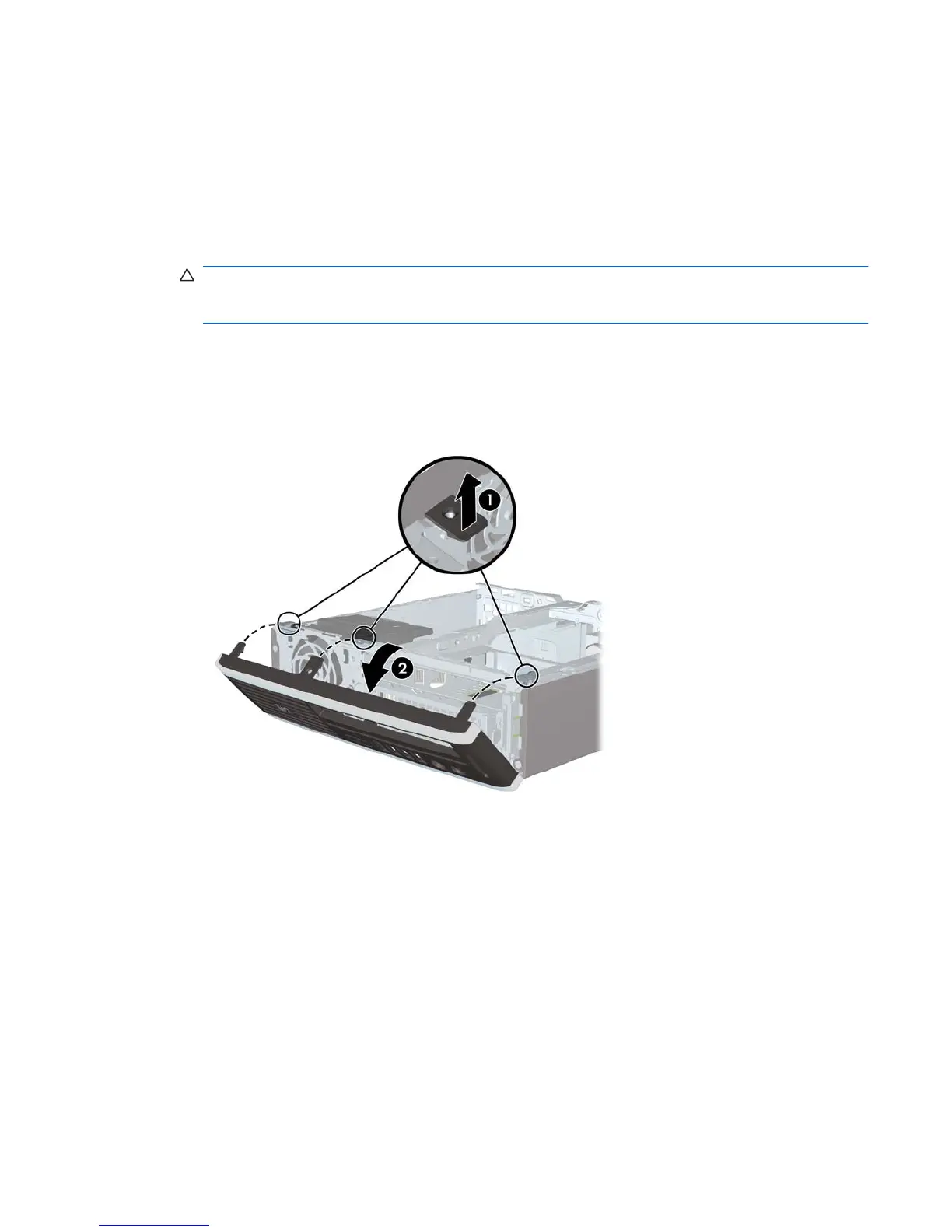

7. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
Figure 2-4 Removing the Front Bezel
ENWW Removing and Replacing the Front Bezel 11

HP COMPAQ 8000 Specifications

General

Chipset	Intel Q45 Express
Audio	Integrated High Definition audio
Processor	Intel Core 2 Duo
RAM	Up to 16 GB DDR3
Storage	HDD or SSD
Graphics	Integrated Intel Graphics Media Accelerator
Operating System	Windows 7, Windows Vista, Windows XP
Network	Integrated Gigabit Ethernet
Ports	1 VGA, 1 DisplayPort, 1 serial, audio in/out
Optical Drive	DVD-ROM
Form Factor	Small Form Factor
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
