3. Slide the optical drive through the front bezel all the way into the bay so that it locks in place (1),
then connect the cable to the rear of the drive (2).

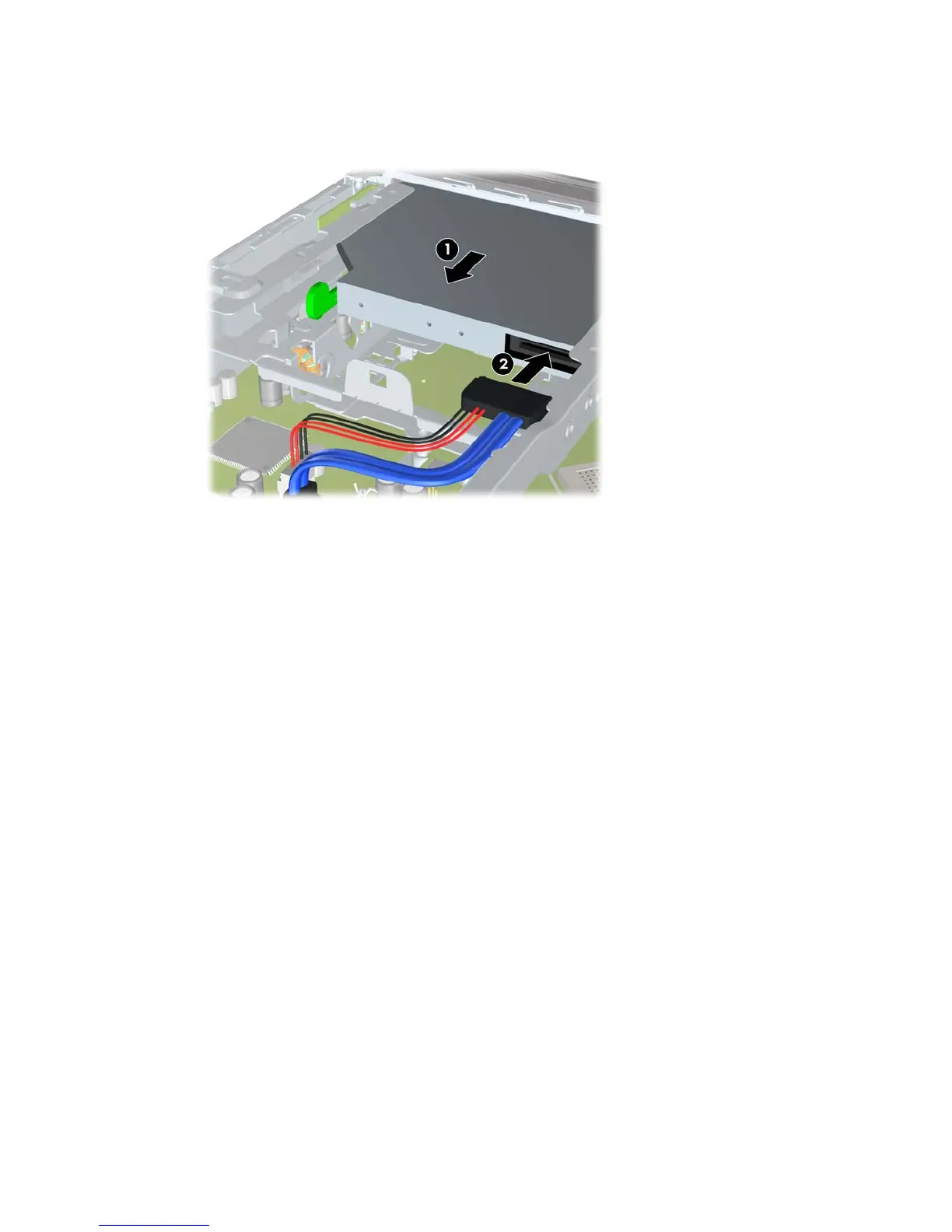

Figure 2-13 Installing the Optical Drive
4. Replace the access panel.
5. If the computer was on a stand, replace the stand.
6. Reconnect the power cord and turn on the computer.
7. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
ENWW Replacing the Optical Drive 21
