3. Connect the power and data cables to the drive as indicated in the following illustrations.
a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back
of the drive.

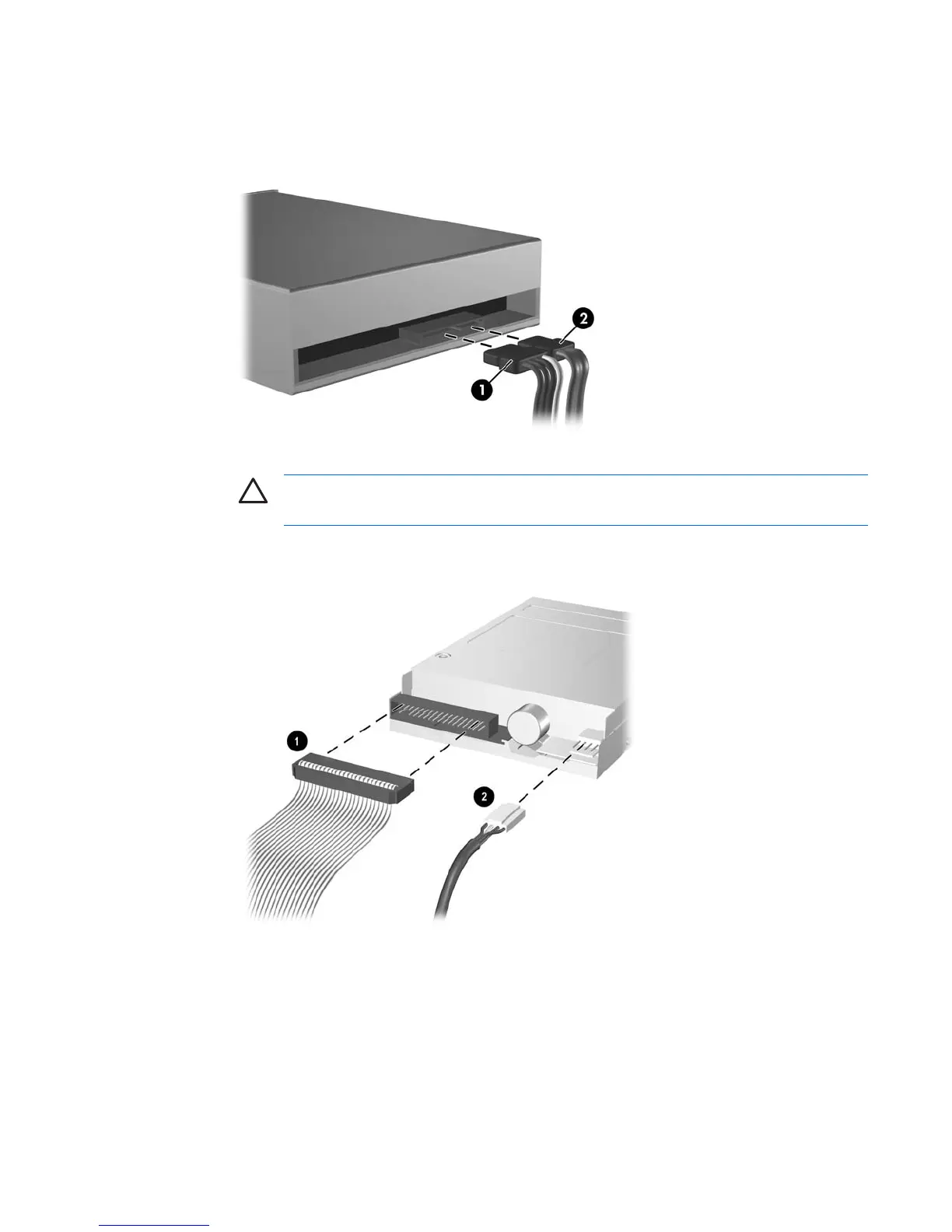

Figure 2-20 Connecting the Optical Drive Cables
CAUTION Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in)
radius. A sharp bend can break the internal wires.
b. If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.
Figure 2-21 Connecting the Diskette Drive Cables
4. If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
ENWW Installing Additional Drives 27

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
